Upper Strip external Zones with Multiple Slope top
Avatar
Isaac

Moderator
Forum Posts: 1389
Member Since:
March 25, 2024
sp_UserOfflineSmall Offline
2
February 27, 2025 - 12:12 pm
sp_Permalink sp_Print

Hi Dan,

See the following video:

Let me know if you have any questions.

Regards,

Isaac

Avatar
Daniel Jones
Member

Full
Forum Posts: 10
Member Since:
March 12, 2024
sp_UserOfflineSmall Offline
1
February 27, 2025 - 11:19 am
sp_Permalink sp_Print

I am trying to create two different framed angled wardrobe. The smaller one is a fully slope so i used modify -> Single Slope Top to angle the cabinet. I am then able to create a 100mm frame all the way around the Wardrobe to be used as fillers so they can be used for scribing on site.

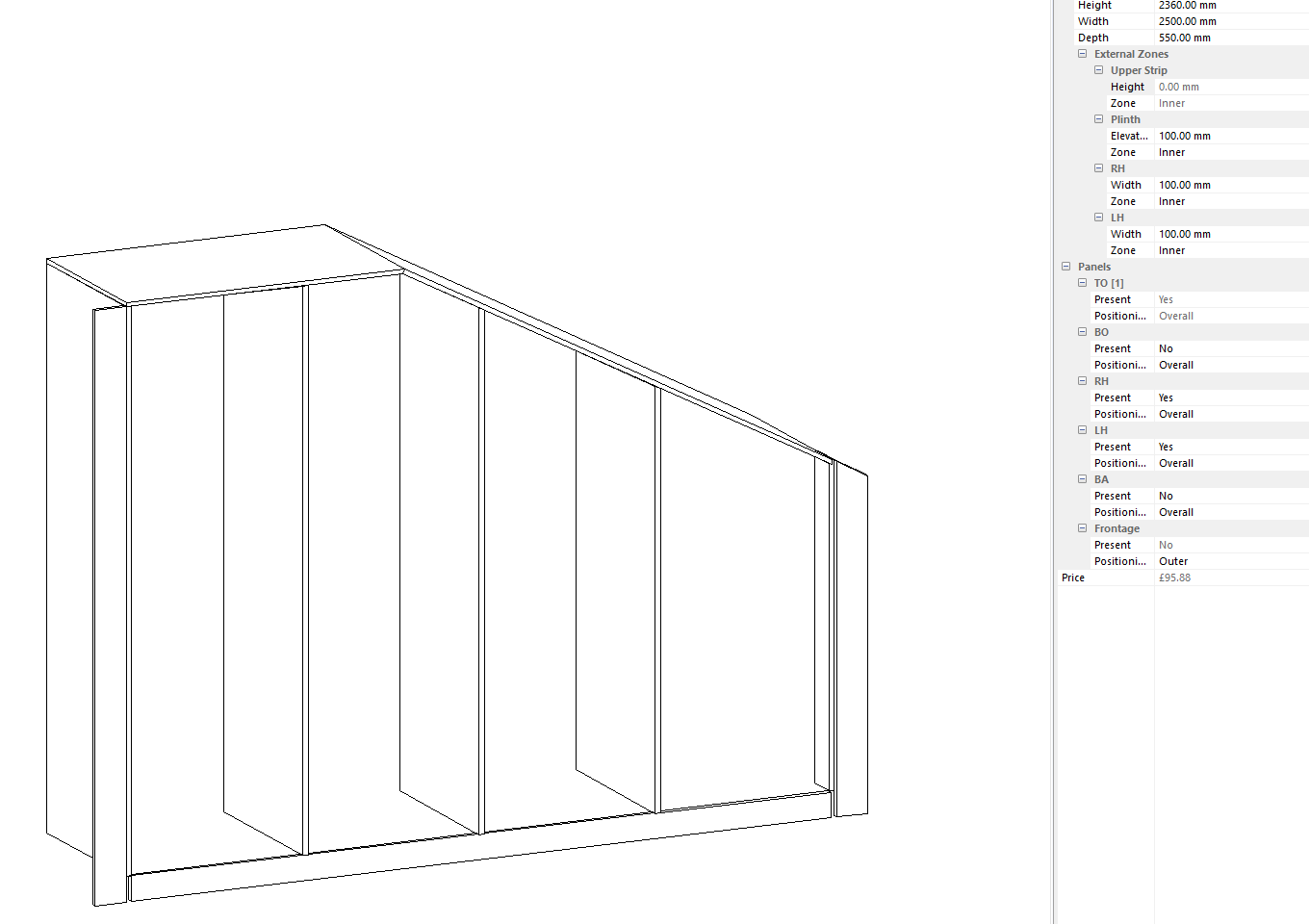

The Second Wardrobe is wider and required a flat top of 1000mm and then a 35 degree slope. In this case I am unable to create an upper strip external zone and unable to allow for this is on the cabinet.





Please can you advise either what I am doing wrong or if there is an alternate method for this.



Thanks Dan,
