Hi Nadeem,

This follows the same reasoning as my previous post.

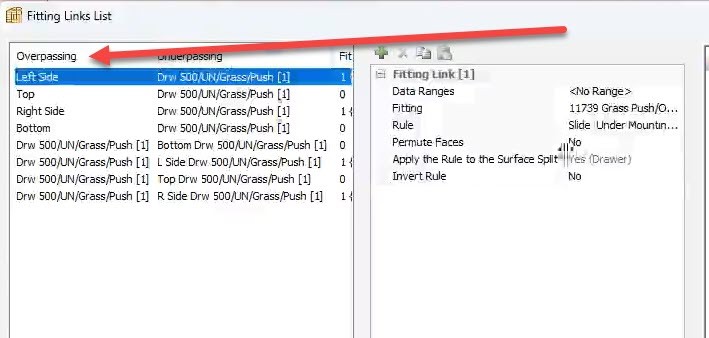

In the first image, you can see the fitting link when the drawer is initially added. At this point, the drawer front is the overpassing panel.

However, once you add a door, the drawer automatically becomes built-in so the door can sit in front. As a result, the drawer side becomes the overpassing panel instead of the drawer front. The second image—taken from your video after the door is added—illustrates this change.

That’s why the fittings are referencing differently; the overpassing panel in your design has changed.

I hope this is helpful.

Best regards,

Isaac

Hi Nadeem,

Thank you for sending those files to me.

This is correct, the reference that the fittings are permuting between is the same for both the overpassing and the underpassing panels, this is how it was designed to operate. See a greater explanation in the following video. I have also shown you how to fix this fitting to the outside face for whatever requirements you have to do this 🙂

Best regards,

Isaac

Hi Nadeem,

See the following video:

If you are still having problems, please send me a copy of your parameter folder.

Regards,

Isaac

Hi,

Can you update to the last 8.01J , then try again and let use us know if you already have this issue,

>How do I update my software?

Cheer, Alex

Hi Nadeem,

Thank you for notifying me of this.

Can you please send me the cabinet file you are using?

Regards,

Isaac
