Moderator
March 25, 2024
Offline
Hello Irmantas,
Thank you for your question. You have three options:

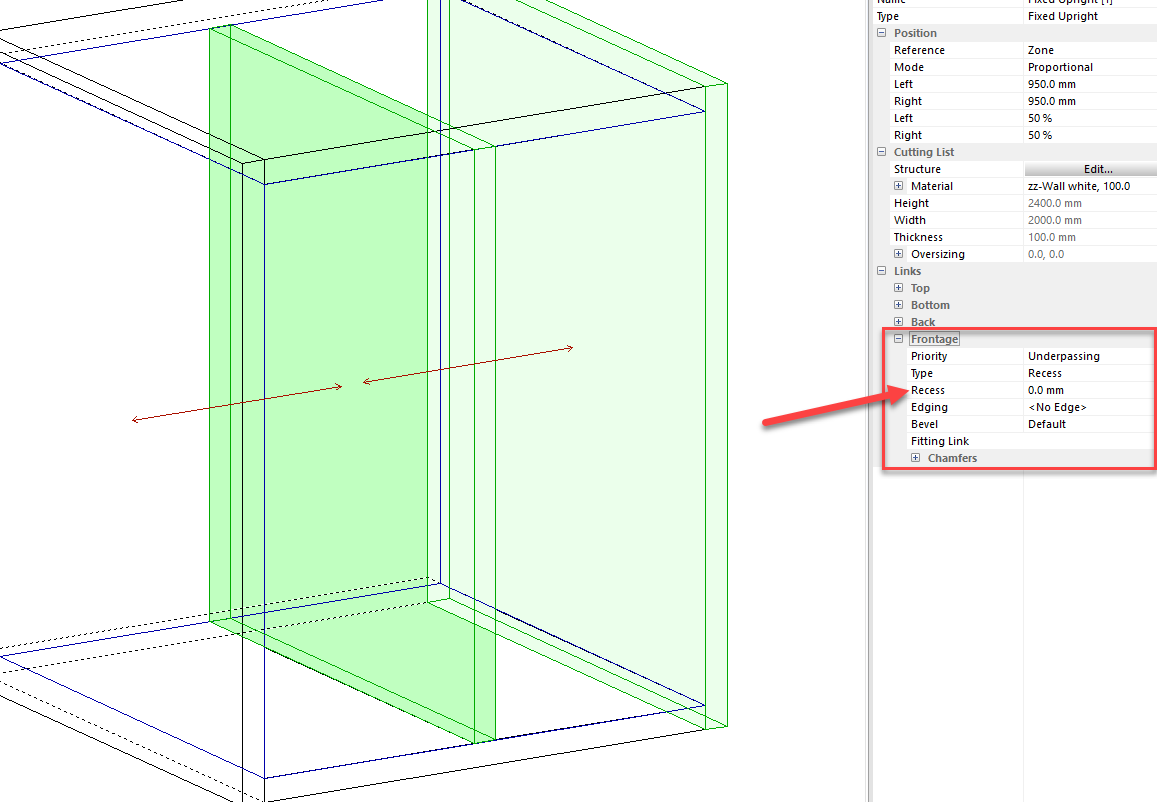

1. Use the properties to recess the upright from the front of the room. Note, this will still split the zone of the cabinet completely.
2. Add a double back and make this a nil panel. Once this is a nil panel, add a upright in the inside zone.
3. Create the room, and add the upright as a separate panel in the project mode. See more information here:
Regards, Isaac
Full
July 15, 2026
Offline
Hi everyone,
I have my room shell created with the sloped ceiling and full room measurements set up.

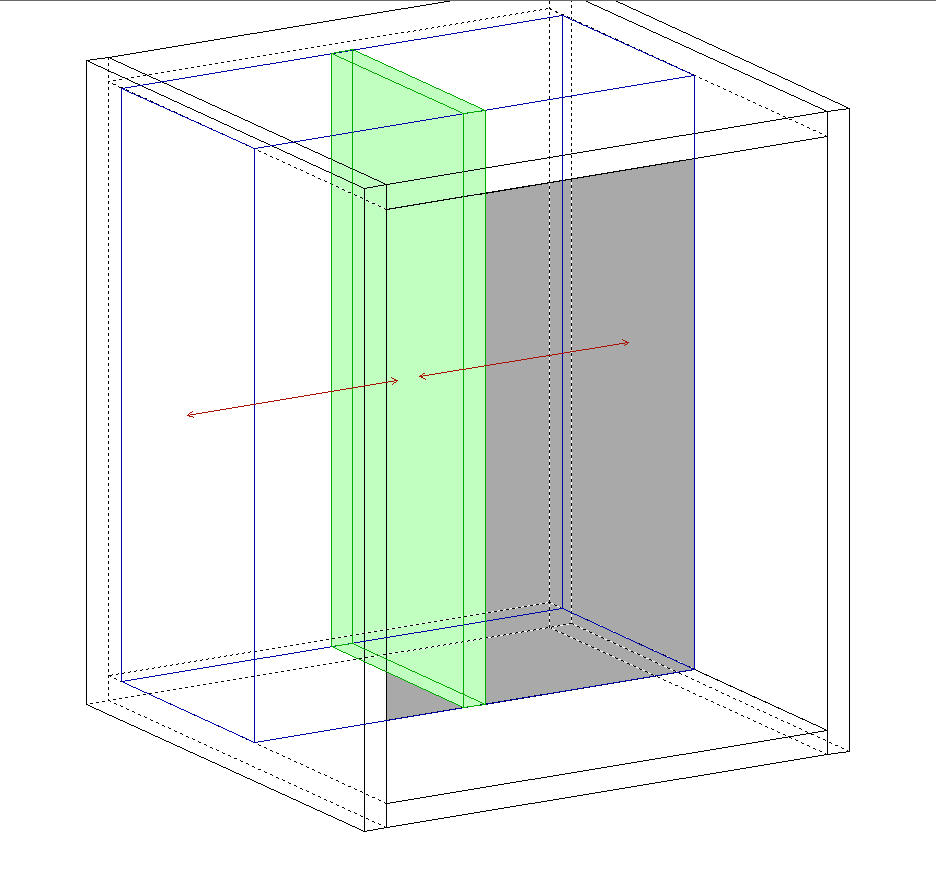

When I add an internal vertical division (upright) into the space, Polyboard automatically gives it the full room depth. I need this specific division to have a depth of 295mm, but I cannot find the setting or option to change the depth of just an individual division.
Could someone please explain where in the division properties or volume settings I can adjust the depth of an internal upright?
