Double winder staircase.|Page 2|Forum|WOOD DESIGNER
February 25, 2026
Offline
Hi Isaac,
Ah ok, thanks for clarifying that. I didn’t realise I hadn’t included a groove at the top of the riser going into the bottom of the tread so I’ll make sure I cut one in and add that measurement onto the riser. AS for the bottom of the riser what do you recommend there? Is it fine to just sit it on with out a groove there?
Thanks
Craig
Moderator
March 25, 2024
Offline
Hello Craig,

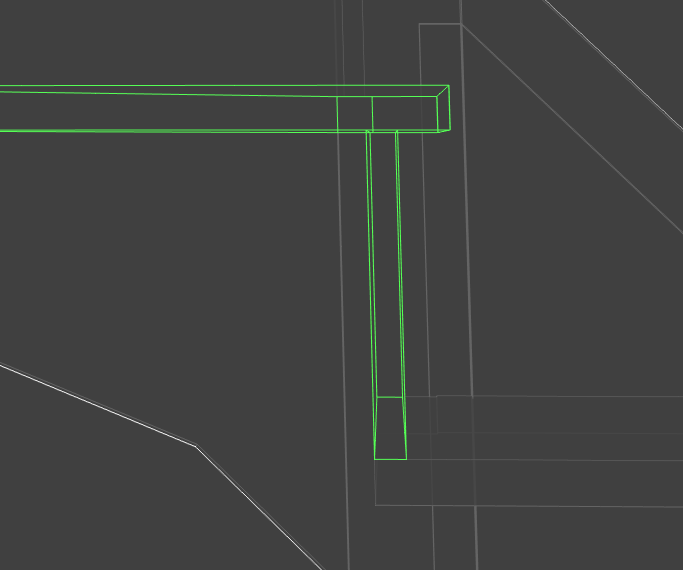

In the file that you previously sent, the risers are just sitting above and below the treads, flush with the back edge with no groove or recess. See the following image:
Does this help?
Regards, Isaac
February 25, 2026
Offline
Hi Isaac,
I have a quick question about building the stairs. Does the back edge of the treads where it meets the bottom of the riser have a rebate or groove for the riser to sit in or are the riser just sat on the back edge of the tread and screwed from underneath?
Thanks
Craig
February 25, 2026
Offline
Hi Isaac,
Thats great, thanks for the files, I will wlt you know if there are any issues with printing.
Craig
Moderator
March 25, 2024
Offline
Hello Craig,
Attached are your files. Note, I set the maximum printing width to 820mm, which I believe should fit to a 840mm page.
Let me know if there are any problems with these printing files.
Regards, Isaac
February 25, 2026
Offline
Hi Isaac,
I spoke to the printers and they said the paper is 840mm wide and then as long as needed. Is that what you meant?
Thanks
Craig
Moderator
March 25, 2024
Offline
Hi Craig,
Yes, I provide them here.
What is the dimensions of your paper that you need printed?
Regards, Isaac
February 25, 2026
Offline
Hi Isaac,
That’s great, thanks. I’ve purchased the template files also, do I request them here on the forum?
Thanks
Craig
Moderator
March 25, 2024
Offline
Craig,
See your files attached.
Regards, Isaac
February 25, 2026
Offline
Hi Isaac,
I wasn’t sure if it would be possible again this month so thank you for the exception, I appreciate it. I’ve just changed tread thickness and wedge angles. I’ve attached the updated file.
Thanks
Craig
