Double winder staircase.
Page: 1234Jump to page
Avatar
Isaac

Moderator
Forum Posts: 1521
Member Since:
March 25, 2024
sp_UserOfflineSmall Offline
2
February 27, 2026 - 9:26 am
sp_Permalink sp_Print

Hello Craig,

Two points to consider

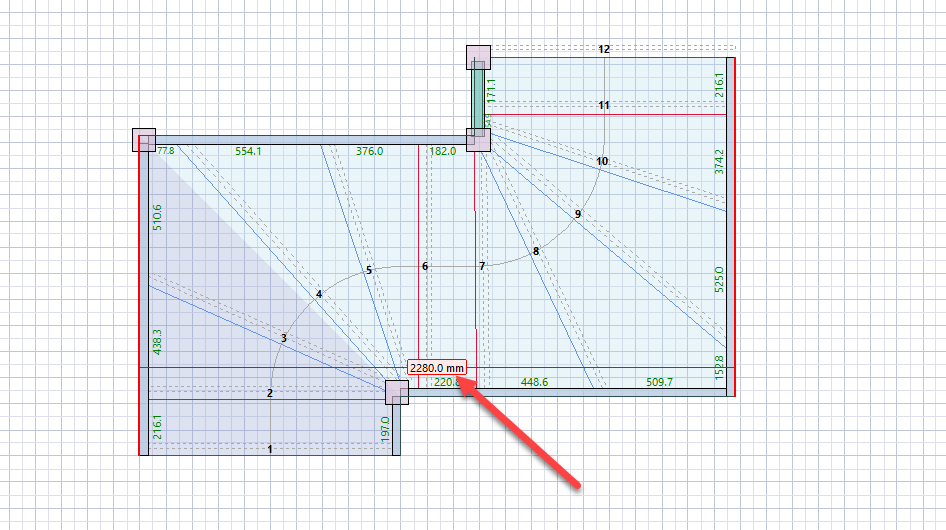

1. Overall width does not measure as 2430mm.

2026-02-27_09-24-14.PNGImage Enlarger

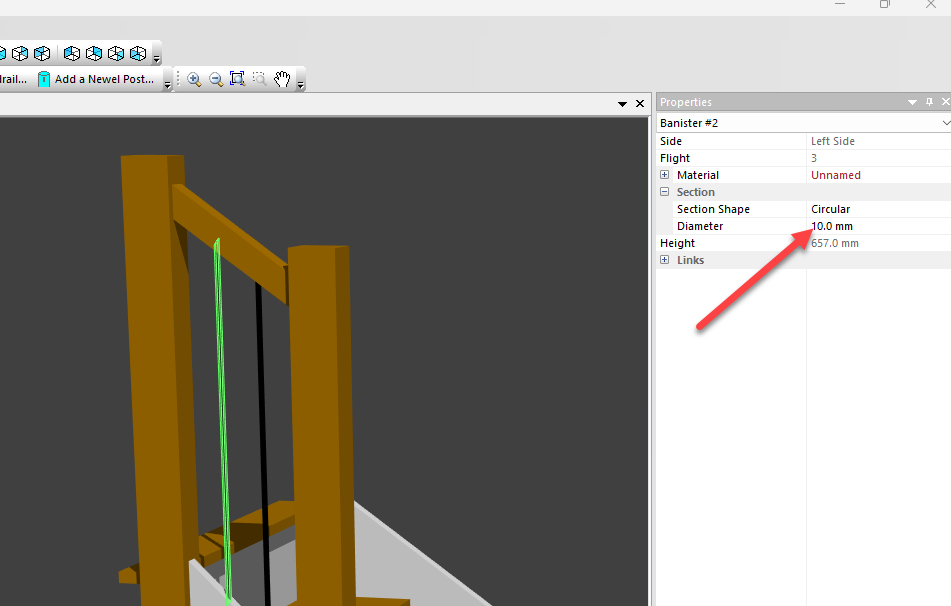

2. Banister diameter is not 14mm.

2026-02-27_09-24-32.PNGImage Enlarger

Please confirm/adjust as you require. Let me know when you are finished and I can provide you the files.

Regards, Isaac

sp_PlupAttachments Attachments
Avatar
Craig Firth
Member
Guests
Forum Posts: 17
Member Since:
February 25, 2026
sp_UserOfflineSmall Offline
1
February 26, 2026 - 9:17 pm
sp_Permalink sp_Print

Hello,

I would appreciate a technical review of the attached StairDesigner file prior to StairFile generation.

Details –

Floor-to-floor height: 2480 mm
Structural opening: 2430 x 1300 mm
Configuration: Double Winder
Strings: Housed both sides
Treads: 22 mm oak
Risers: 18mm ply
Handrail and 14 mm round metal balusters

Please confirm:

Geometry compliance (rise/going/headroom)

String sizing adequacy

Any recommended adjustments before manufacturing output

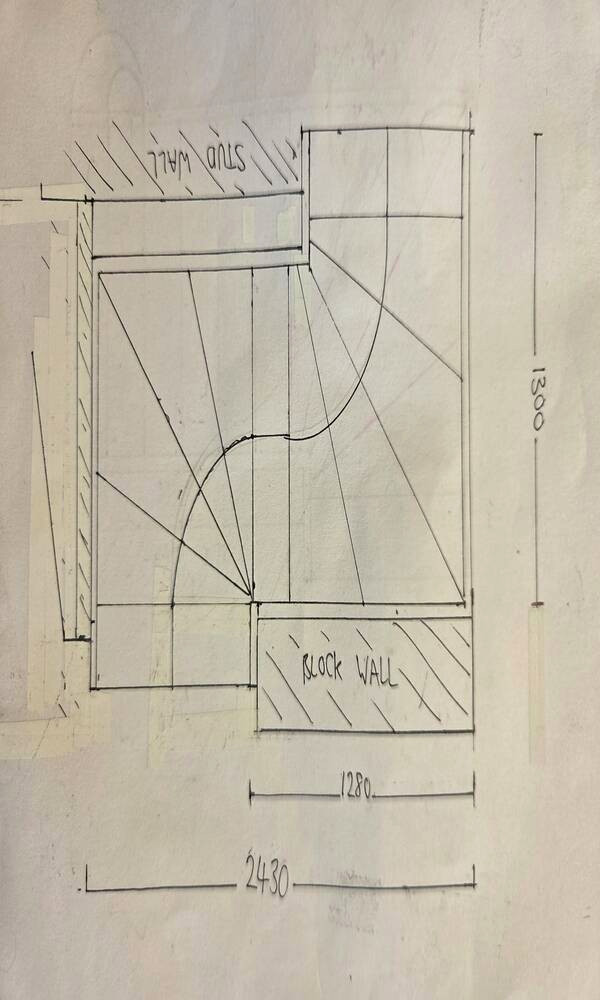

A to-scalersz_1final_stair_plan.jpgImage Enlarger

plan is attached for reference.

Thank you.

sp_PlupAttachments Attachments
