adding tread returns on end of treads
Avatar
Petru

Moderator
Forum Posts: 20
Member Since:
August 10, 2026
sp_UserOfflineSmall Offline
4
September 30, 2026 - 1:11 pm
sp_Permalink sp_Print

Hello Elias,

After studying your stair project and under reservation that I have properly understood your request I can tell you that this can’t be done directly because the stringboard was applied to steps and the cut string is under the steps (and the risers) but you can combine both solutions.

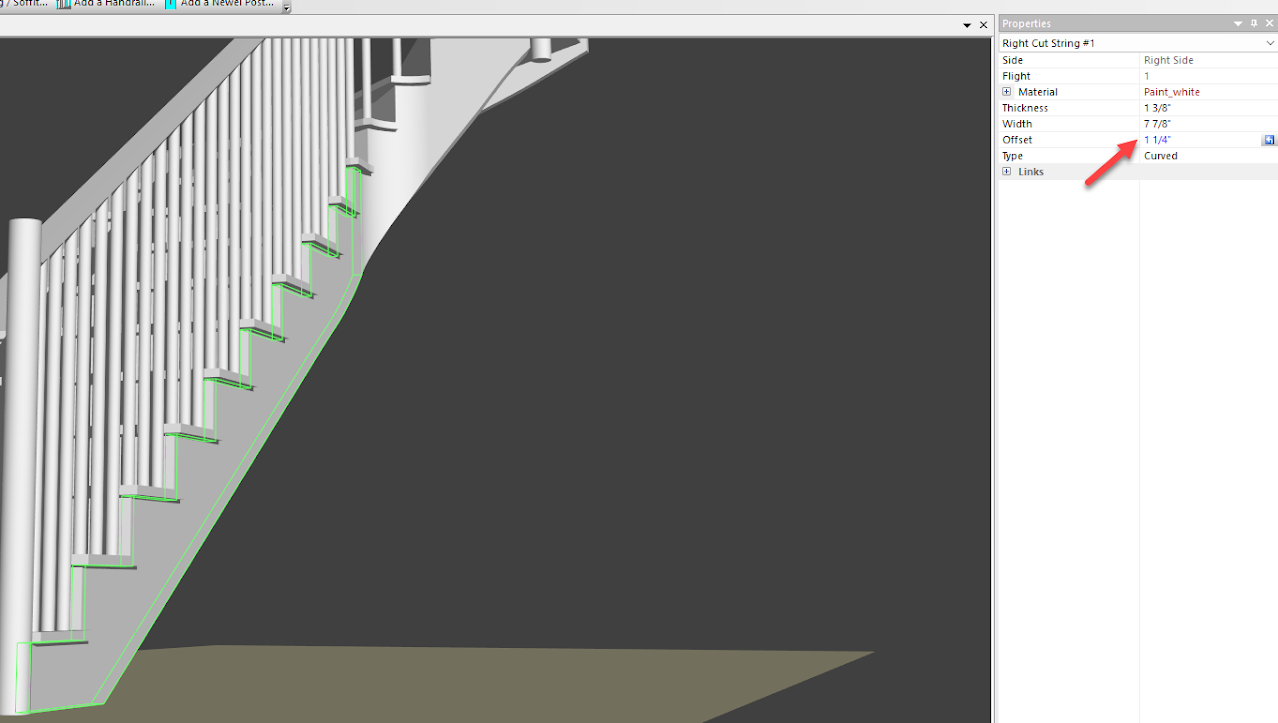

First add a recess to your Cut String (and handrail) equal to your nosing (here 1″ 1/4):

fix_1-1.pngImage Enlarger

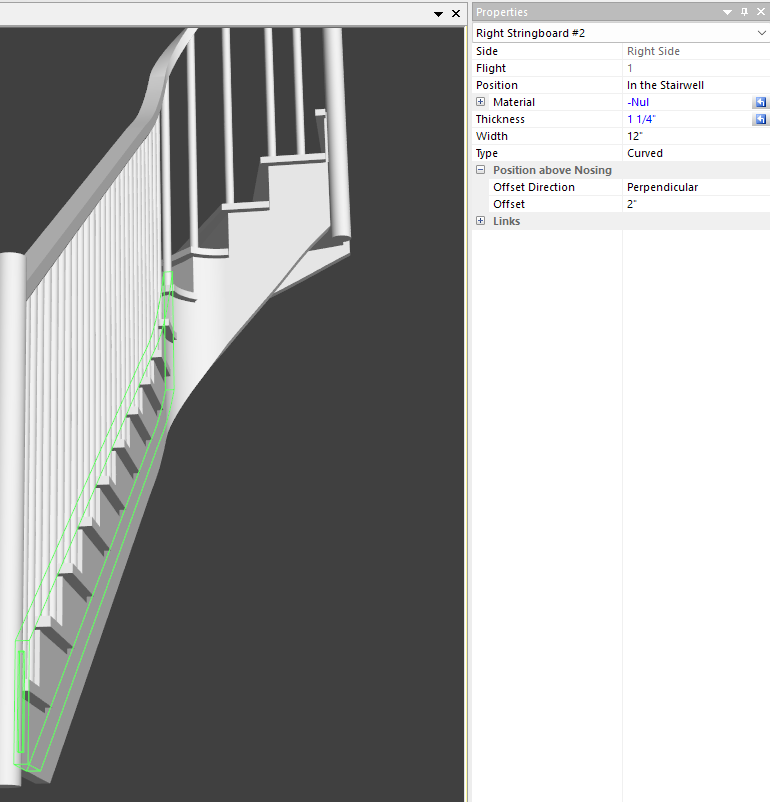

Add Stringboard with the same thickness as “nil material” (or 100% transparency):
fix_2-1.pngImage Enlarger

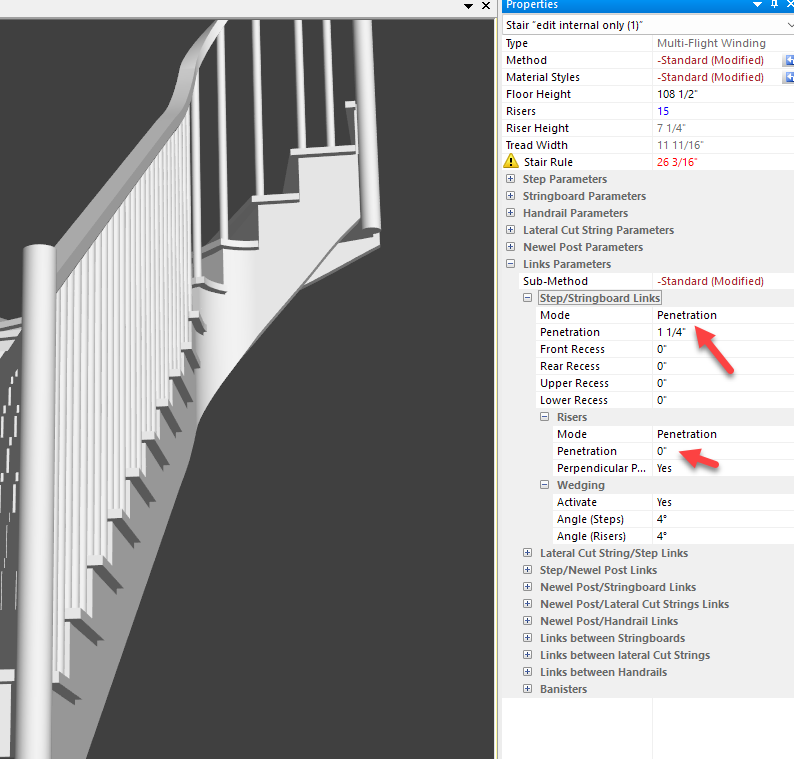

This will then allow you to modify the step penetration and risers into stringboard to obtain the desired view:
fix_3-1.pngImage Enlarger

Regards, Petru
sp_PlupAttachments Attachments
Avatar
elias witt
Member

Full
Forum Posts: 5
Member Since:
September 19, 2026
sp_UserOfflineSmall Offline
3
September 30, 2026 - 12:43 am
sp_Permalink sp_Print

Hi Petru , Here is the requested file. I would like to have the same overhang as the front nosing on the open side of the staircase.

Avatar
Petru

Moderator
Forum Posts: 20
Member Since:
August 10, 2026
sp_UserOfflineSmall Offline
2
September 28, 2026 - 5:59 am
sp_Permalink sp_Print

Hello Elias,

To make sure I understand your request, would it be possible for you to upload your StairDesigner file?

This will allow me to offer you the most appropriate solution for your project.

Regards, Petru

Avatar
elias witt
Member

Full
Forum Posts: 5
Member Since:
September 19, 2026
sp_UserOfflineSmall Offline
1
September 26, 2026 - 10:26 pm
sp_Permalink sp_Print

Hi, Ive not been able to add the same overhang that I have got on the front of the tread to the end as well. Thanks
