Hello,
For machining layers, I always recommend using the 2D_DXF export, as it preserves the necessary layer information.
The 3D export options do not include machining layers. However, you may still be able to work with the shapes in other 3D software if you have the tools and expertise to adapt them. I don’t have a specific software recommendation, but this could be an option if your workflow supports machining from 3D shapes.
Important note: If you export to 3D_DXF or 3DS, you’ll need to reintroduce the machining details in another software before the design can be used for correct machining operations.
Regards, Isaac
Full
February 22, 2024
Offline
Full
February 22, 2024
Offline
how to export a usable dxf to make a handrail. what software do you recommend to make a handrail with and how.
kind regards Per
Moderator
March 25, 2024
Offline
Hello,
The only option you have for 3D export is a 3D dxf, or 3ds file. Note, these do not contain all manufacturing layers and data.

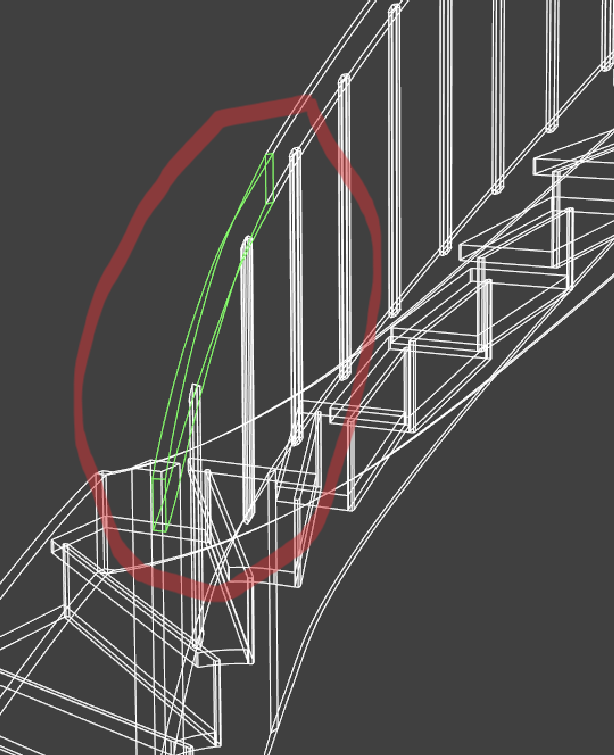

See the following image:
Regards,
Isaac
Full
February 22, 2024
Offline

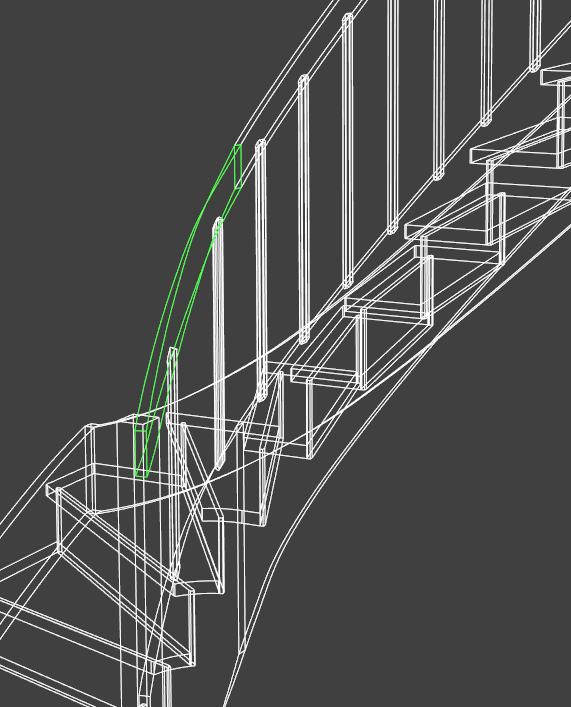

thanks for the answer but I would like to have the swing itself in 3d dxf for my alfacam software
Moderator
March 25, 2024
Offline
Hello Per,

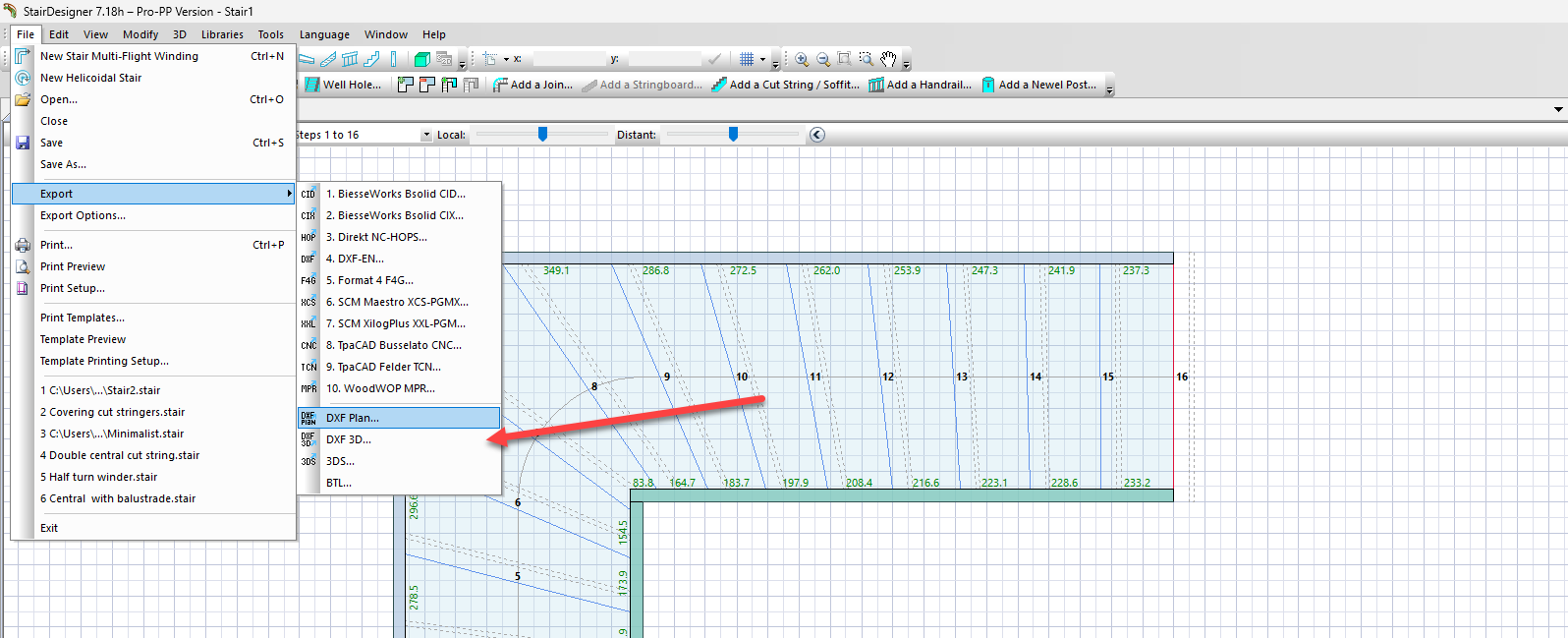

You can choose what items are exported in your PostProcessor setup settings. I have showcased an example with the DXF, and the same can be done in each type of PostProcessor export. Note, in any other PostProcessor parts are excluded in each individual layer.
Regards, Isaac
