request for stairfile
Avatar
Alex
FRANCE

Moderator
Forum Posts: 2128
Member Since:
January 20, 2017
sp_UserOfflineSmall Offline
7
July 15, 2024 - 3:12 pm
sp_Permalink sp_Print

DXF-2D folder in part to part, but required CAD software to take dimension,



Cheers, Alex

Avatar
Stephen Vis
Member
Guests
Forum Posts: 4
Member Since:
July 10, 2024
sp_UserOfflineSmall Offline
6
July 15, 2024 - 1:16 pm
sp_Permalink sp_Print

Thanks! Perfect



Do you know in which file the step dimensions in the side stringer are best visible

Avatar
Alex
FRANCE

Moderator
Forum Posts: 2128
Member Since:
January 20, 2017
sp_UserOfflineSmall Offline
5
July 15, 2024 - 12:01 pm
sp_Permalink sp_Print

Hi again,

Please find your stairFile attache

What you see and measure is the contact surface.

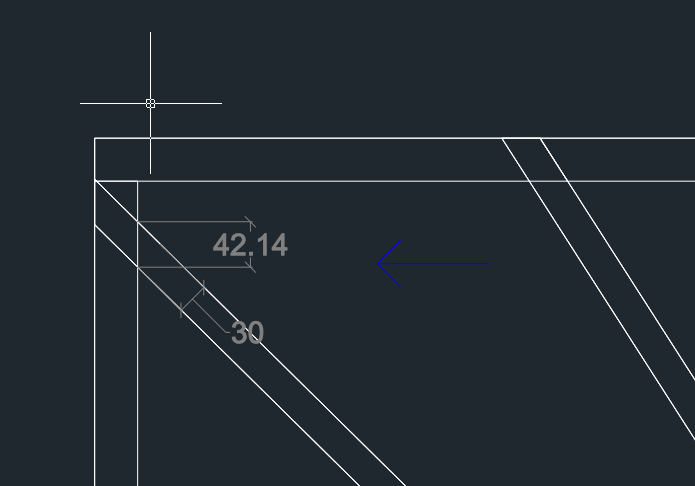

front-view.pngImage Enlarger

cheers, Alex

sp_PlupAttachments Attachments
Avatar
Stephen Vis
Member
Guests
Forum Posts: 4
Member Since:
July 10, 2024
sp_UserOfflineSmall Offline
4
July 15, 2024 - 11:45 am
sp_Permalink sp_Print

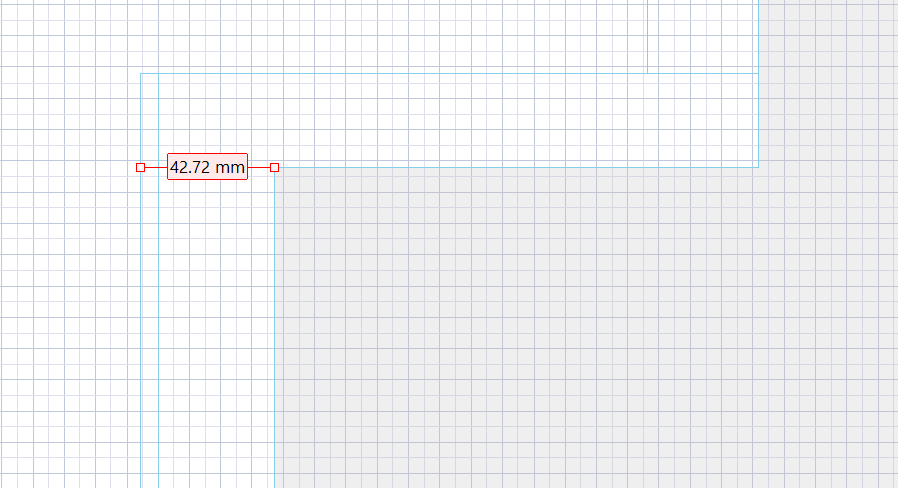

Screenshot-2024-07-15-123901.pngImage Enlarger



The risers are 30mm thick. Why is the measurement tool so off? And why are there multiple planes?

sp_PlupAttachments Attachments
Avatar
Stephen Vis
Member
Guests
Forum Posts: 4
Member Since:
July 10, 2024
sp_UserOfflineSmall Offline
3
July 15, 2024 - 11:36 am
sp_Permalink sp_Print

Yes please

Will follow up on the question

Avatar
Alex
FRANCE

Moderator
Forum Posts: 2128
Member Since:
January 20, 2017
sp_UserOfflineSmall Offline
2
July 15, 2024 - 11:14 am
sp_Permalink sp_Print

Hi,

Sorry I don’t understand your bonus question,

can I process this stair for your stairfile?

Cheers, Alex

Avatar
Stephen Vis
Member
Guests
Forum Posts: 4
Member Since:
July 10, 2024
sp_UserOfflineSmall Offline
1
July 15, 2024 - 9:47 am
sp_Permalink sp_Print

Bonus question – the steps are 30mm thick. Sometimes the distance is changed in the drawings like 35mm. Is this because the fronts are not straight?
