Stair Design to Attic|Forum|WOOD DESIGNER
Moderator
March 25, 2024
Offline
Gerard,
See your files attached.
The printer will depend on the size you require for your stringers. We can split it across multiple pages if required.
Regards, Isaac
January 29, 2026
Offline
Hi Isaac,
Thanks for that, when I add landing Stringer the Handrail & Newel line up. Think this is it. I’m interested in 1:1 prints as well but was wondering if an A3 printer would be any use for doing Stringers? Can you process drawings and Pdf for now please.
Kind Regards,
Ger.
Moderator
March 25, 2024
Offline
Hello Gerard,
See the following video:
[Permission to view this media is denied]
Regards, Isaac
January 29, 2026
Offline
Hi Isaac,

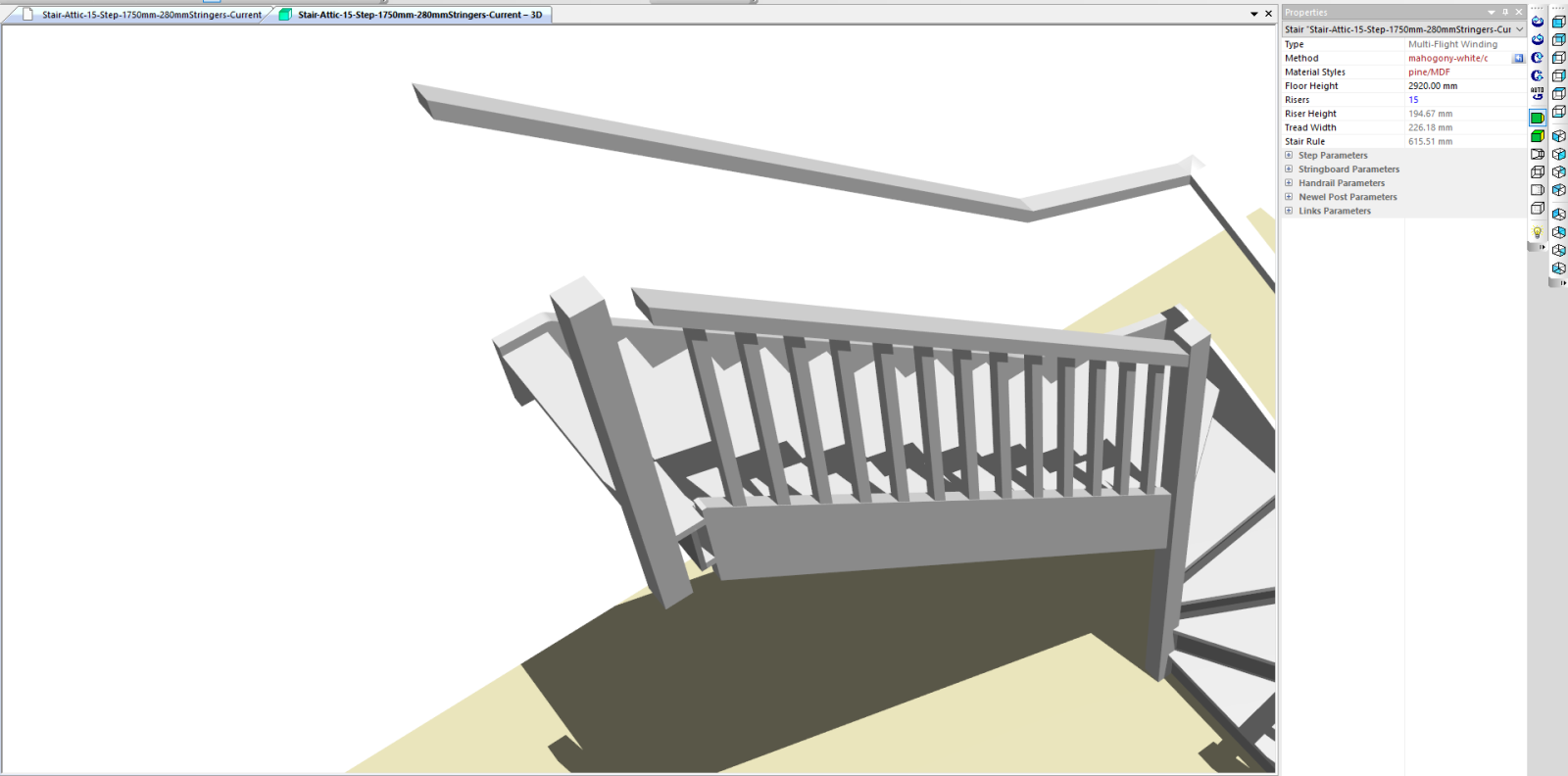

Didn’t know how to do that, so now can thanks. Was also looking to add Newel post at top of stairs on Left Stringer but this is what happens. I can extend stringer for joint on timber part anyway unless easy way to add? Thanks.
Ger.
Moderator
March 25, 2024
Offline
Hello Gerard,
From what I can see and understand, the design seems sound to me.

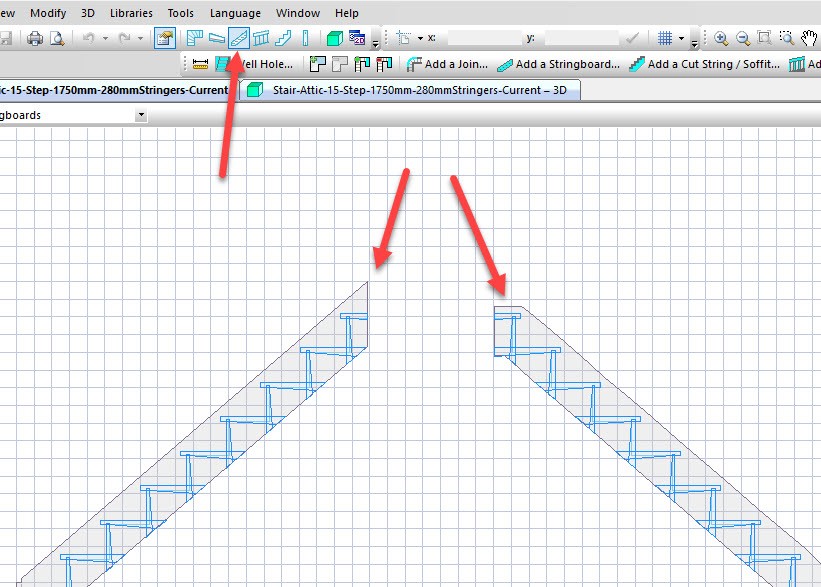

Note the different stringboard shapes at the top of the design. If you need to modify these or create notches/hooks, you can do that through displaying the stringboards:
Regards, Isaac
January 29, 2026
Offline
Hi,

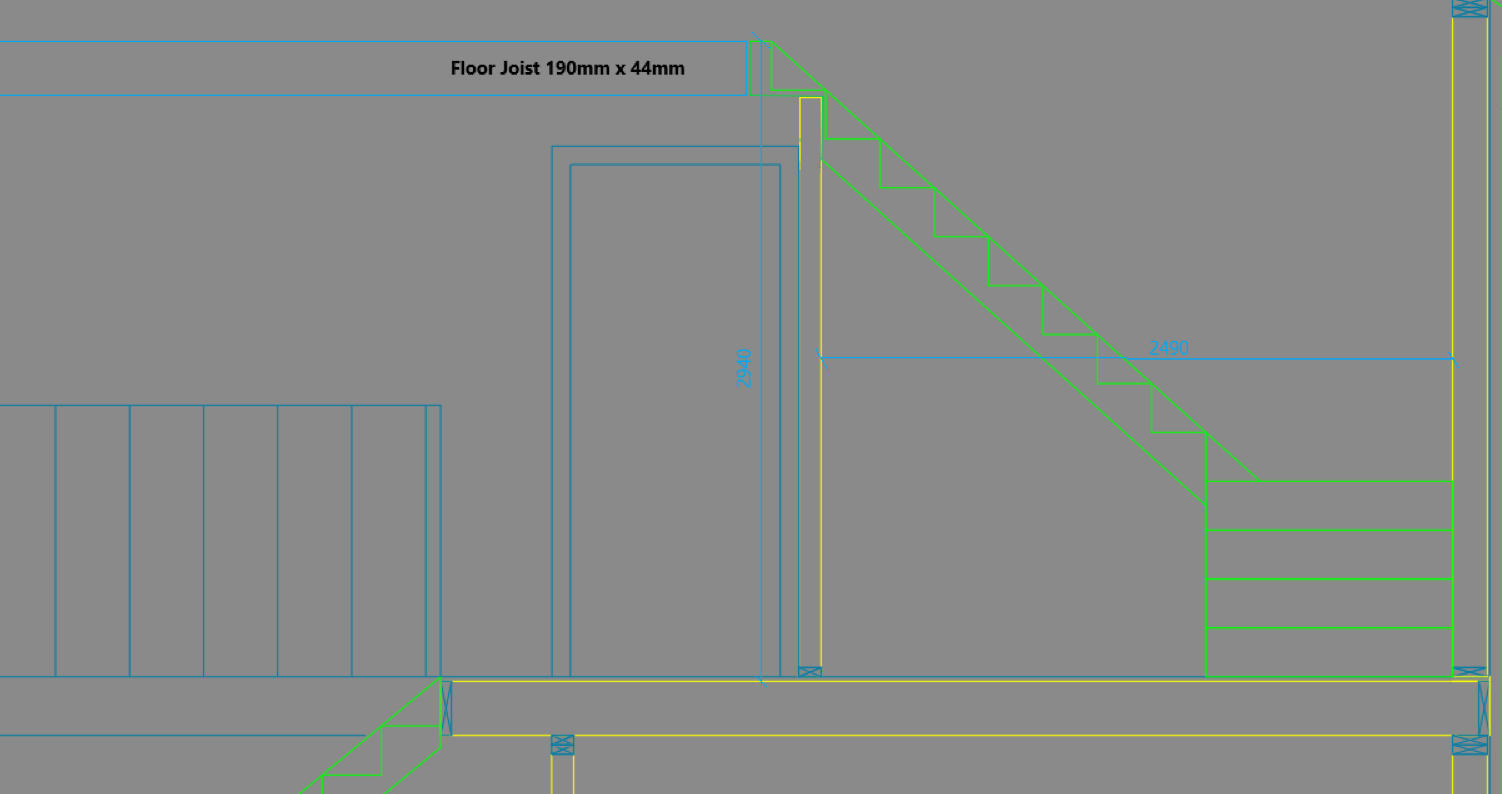

Can you please have a look at attached design and let me know if it is ok. The stair well is limited and roof is 35° above it. I am thinking of aligning step 14 with the top of the wall and notching stringers to suit. Hope this makes sense with images…
Kind Regards,
Ger.
