Hi Alex,
Thanks for the excellent help.
Regards
Chas
Moderator
January 20, 2017
Offline
Hi,
Please find your StairFile attached.
All the best, Alex.
April 28, 2026
Offline
Hi again!
Sorry it looks like i uploaded the wrong file.
Lets give it another go.
Cheers
Chas
Moderator
January 20, 2017
Offline
Hi,

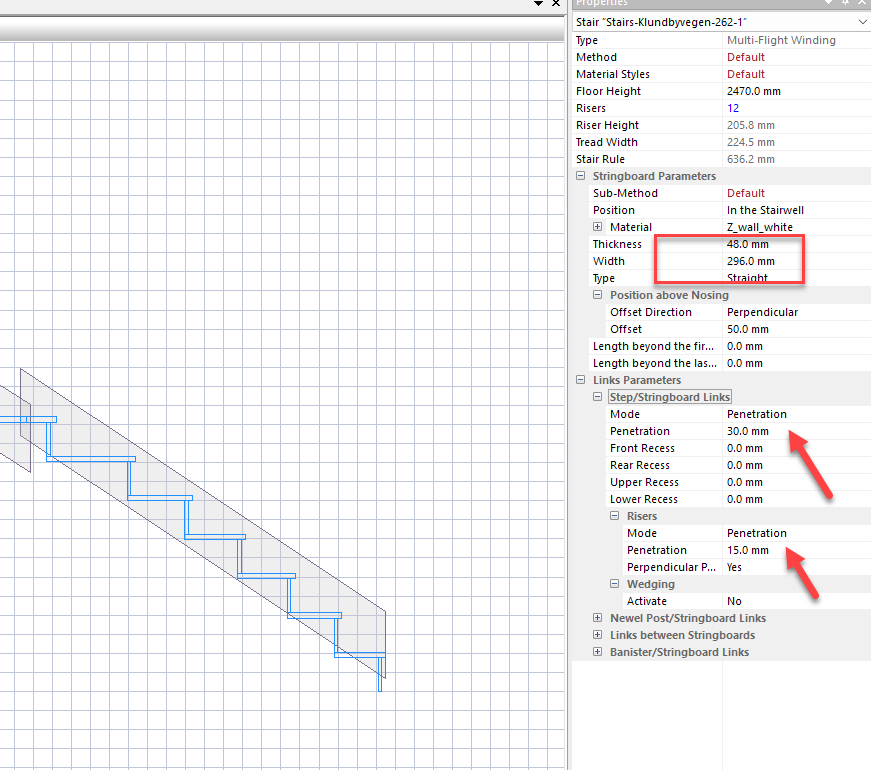

Can you please check again, I see 296 mm width, and a value of 30mm from Step to stringboard. ( did you have 15 like riser in mind?)
Cheers, Alex
April 28, 2026
Offline
Hi!
Appreciate the reply. Ok got it! I have now ammended the dimensions and increased the stringer width to 396 mm to accommodate the steps. I think if there are no apparent issues then we can go ahead and generate the files!
Cheers
Chas
Moderator
November 15, 2018
Offline
Hi Chas,
Sorry for the late reply, Isaac was absent last week.
Based on his last message, I believe he might have been concerned about the overall width. Your stringers, even if they remain straight, should be at least 360mm wide to accommodate all the steps.
Once we receive the final version of your project and your approval to process it, it takes about 15 minutes to generate the StairFile documents, and approx. double the time to prepare the documents to scale, which you can purchase here.
Please note that we do not print the templates. We do, however, prepare the ready-to-print PDF documents for you.
Let us know if you have any further questions.
Best regards,
Laly
April 28, 2026
Offline
also how much to get the to-scale-plans printed and send out? Thanks!
April 28, 2026
Offline
Hi again!
Just checking to see how you guys are getting on with the files.
Cheers,
Chas
April 28, 2026
Offline
Hi Isaac,
Thank you for your reply and question!

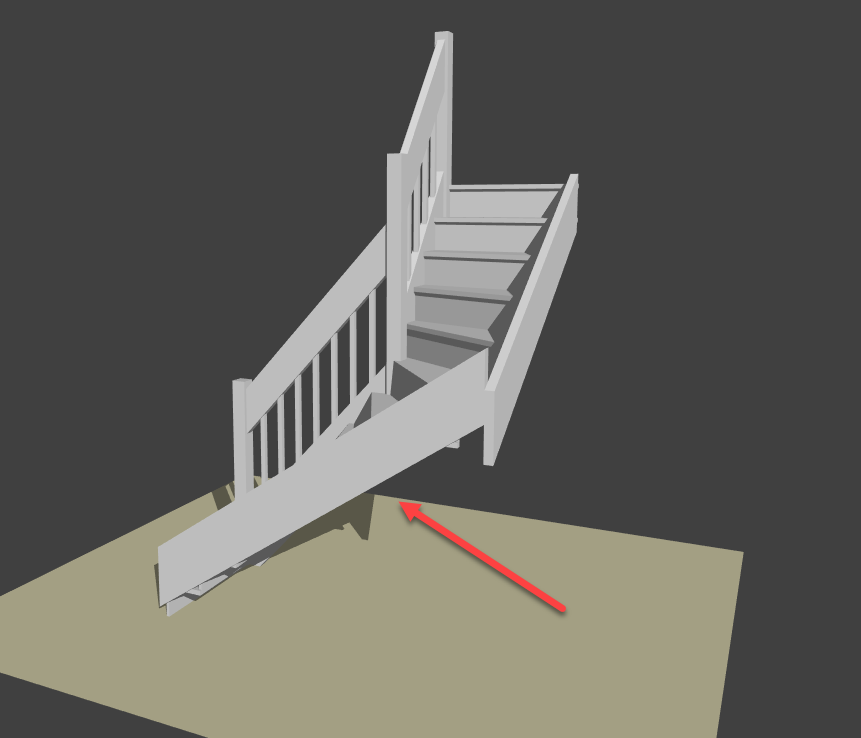

I did not see anything in building code that would impact the usability of such a design. What do you think. Would this sort of design in particular where the stringers meet pose any safety risk? Based on your experience of relevant building requirements. I do not expect you to read up on building codes in Norway, but I would expect a certain level of consistency throughout Europe. Furthermore the stairs are only to connect two floors and i shouldnt expect them to be in use at all. The whole purpose is to be able to rent out the lower floor. Let me know what you think! It is tempting to keep things as simple as possible hence the straight stringers!
Kind regards,
Chas
