Hello Bart,
Sorry for the delayed response.
This is not possible at this time. I would recommend allowing the additional length that is required for in manufacturing, but visually you cannot complete this.
Regards, Isaac
Full
September 14, 2023
Offline
Hi isaac
You said you did n’t undedrstood the second question:

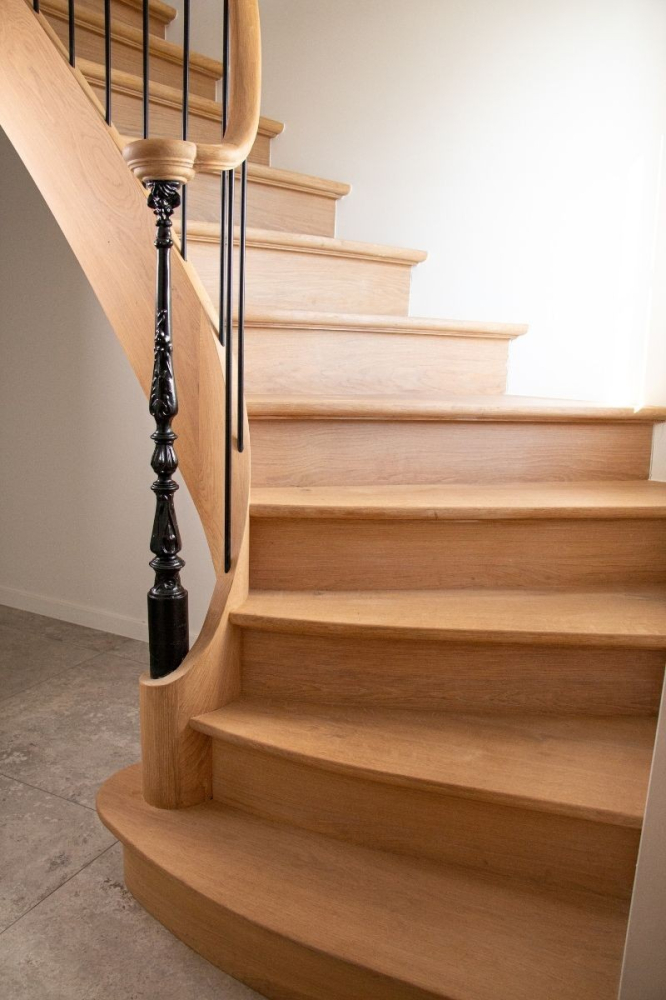

2. On the outer stringer, there will be a turned newel post at the bottom, around which the end of the stringer will be folded, so to speak.see the image for clarification. Thx! Bart
Moderator
March 25, 2024
Offline
Thank you Bart,
1. Please see the following video:
[Permission to view this media is denied]
2. I am sorry, I do not understand your second question. Can you please send an image of what you need to achieve?
3. See the following image, your landing step is longer then your stringboard. To fix this, simply adjust the “length beyond final step” parameter.
Best regards, Isaac
Full
September 14, 2023
Offline
Ok,
here he is.
Moderator
March 25, 2024
Offline
Hello Bart,
Happy new year!
Can you please send me a copy of this stair? I will answer these questions for you.
Regards, Isaac
Full
September 14, 2023
Offline
Hi Isaac!
1. The inner stringers (wall side) need to be straight. So it's a kind of quarter-turn staircase with a curved outer stringer.
2. On the outer stringer, there will be a turned newel post at the bottom, around which the end of the stringer will be folded, so to speak.
3. Then, when I look at my front tread, I notice that it's almost completely milled through the left stringer. Yet, my coordinates are entered correctly (tread edges).
Happy new year and greetings! Bart
