VCarve Pro is a powerful CNC software known for its versatility and usability in CNC routing. One of VCarve’s standout features is its ability to import models from other design software, such as native SketchUp files.
SketchUp is a popular 3D modeling software that allows for the creation of cabinetry and furniture, and is utilized by designers, hobbyists and woodworkers across the industry. VCarve Pro supports the direct import of SketchUp files (.SKP), enabling users to bring their furniture components directly into a machining environment. This integration streamlines the concept to manufacturing workflow without the need of complex file conversions.
SketchUp to VCarve configuration
When designing in SketchUp, it is important that each component of a cabinet is saved as a separate component. It is essential that every individual cabinet piece is defined as a component in SketchUp to ensure proper import and functionality in VCarve.
When importing models into VCarve, the native SketchUp (.SKP) file can be used directly, provided the necessary parameters are configured. This ensures that components are automatically recognized and formatted correctly within the VCarve environment. Refer to the image below for a visual representation of the import settings within VCarve.
SketchUp to VCarve import results

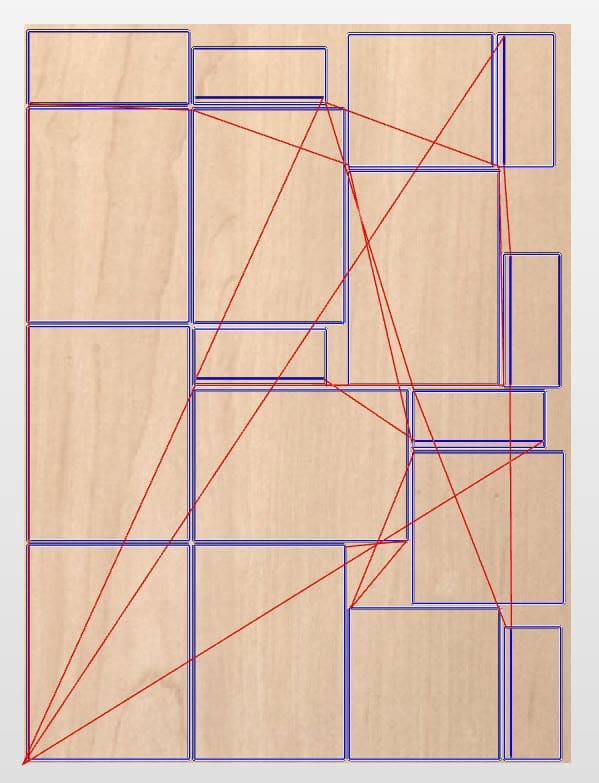

Individual components from SketchUp models will be imported separately into VCarve, enabling them to be efficiently nested and further prepared for machining operations.
Furthermore, the imported vectors can be directly assigned toolpaths, streamlining and automating the setup process for machining operations.
VCarve support and training
In conclusion, SketchUp is a versatile design tool that enables designers to develop projects within a fully 3D environment. VCarve Pro complements this by facilitating the production of these models on CNC machinery, streamlining the creation of vectors within an efficient CAD/CAM workflow.
Wood Designer has extensive experience with VCarve Pro and offers comprehensive support and training to help integrate it seamlessly with SketchUp.
Ultra fast cabinet manufacturing
If however you are finding your SketchUp to CNC workflow too slow for your growing business needs, please consider our cabinet software PolyBoard. Fast and accurate design to manufacturing perfectly integrated with VCarve and your nesting CNC machine.
Our technical team is available to show you the design-to-production configuration, please contact us here today.
