The post processor does not generate a sloped groove milling operation
Avatar
Alex
FRANCE

Moderator
Forum Posts: 2091
Member Since:
January 20, 2017
sp_UserOfflineSmall Offline
4
February 27, 2024 - 11:34 am
sp_Permalink sp_Print sp_EditHistory

You can send the file via our contact form (Forum files for Alex)

Cheers, Alex

Avatar
Puuslik
Estonia
Member

Full
Forum Posts: 46
Member Since:
April 1, 2015
sp_UserOfflineSmall Offline
3
February 27, 2024 - 10:17 am
sp_Permalink sp_Print

Hi,

I get bSolid file from my Biesse dealer, cant`t attach, the zip file exceeds allowed size.

Please send to me email address.



Bw, Ain

Avatar
Alex
FRANCE

Moderator
Forum Posts: 2091
Member Since:
January 20, 2017
sp_UserOfflineSmall Offline
2
February 27, 2024 - 8:39 am
sp_Permalink sp_Print sp_EditHistory

Hi,

Sloped grooves in milling mode are not available for all PPs,

If you are able to provide Biesse programming instructions, we can offer this update to the development team.

Cheers, Alexandre

Avatar
Puuslik
Estonia
Member

Full
Forum Posts: 46
Member Since:
April 1, 2015
sp_UserOfflineSmall Offline
1
February 26, 2024 - 7:06 pm
sp_Permalink sp_Print

I have a 5-axis Biesse, I want to make a cabinet with sloped sides, where the sides are grooved (see pictures).

Is the milling groove only 90 degrees possible? PP generates only a vertical groove.

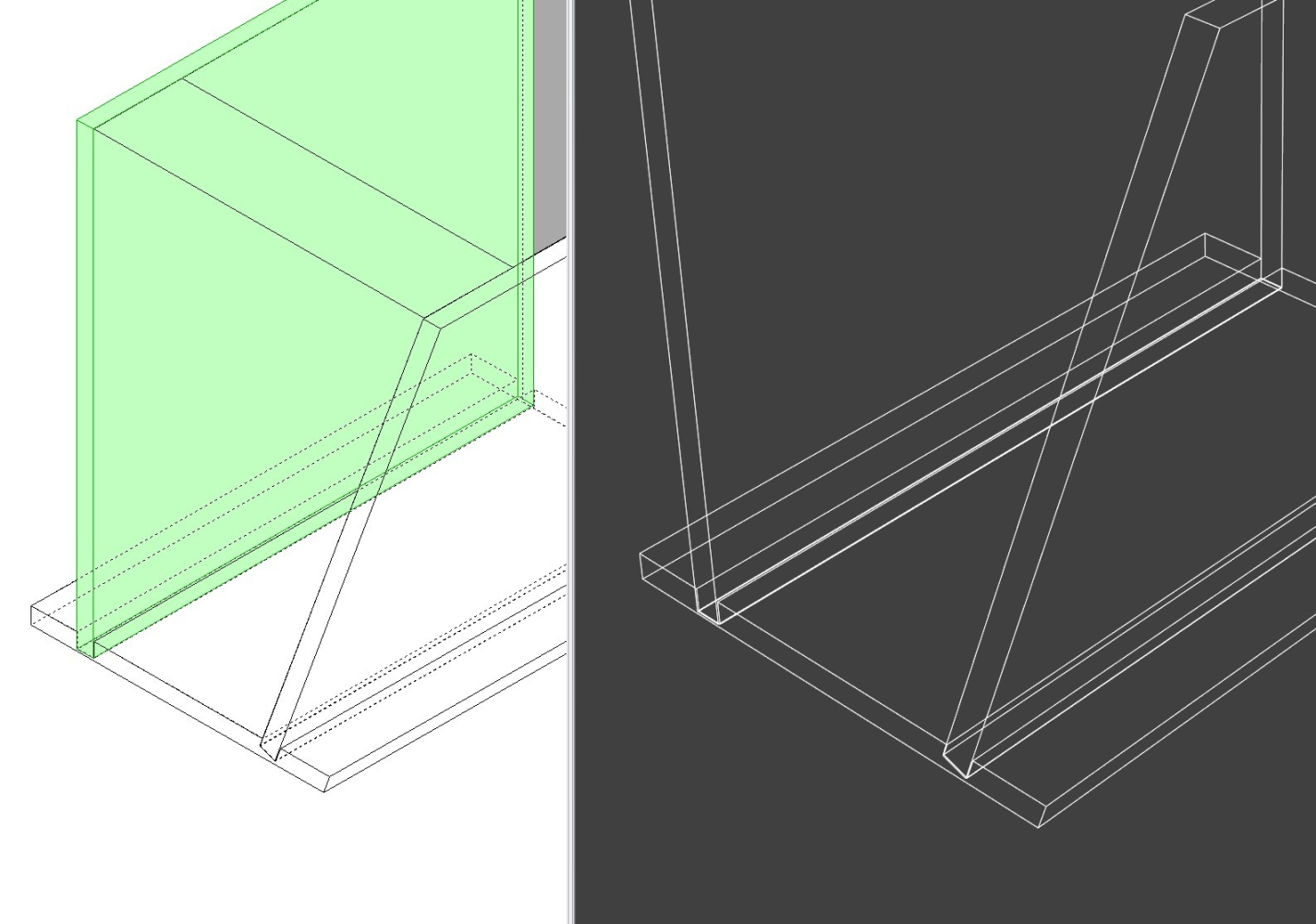

POLYBOARD_right-side-slope-1.jpgImage Enlarger

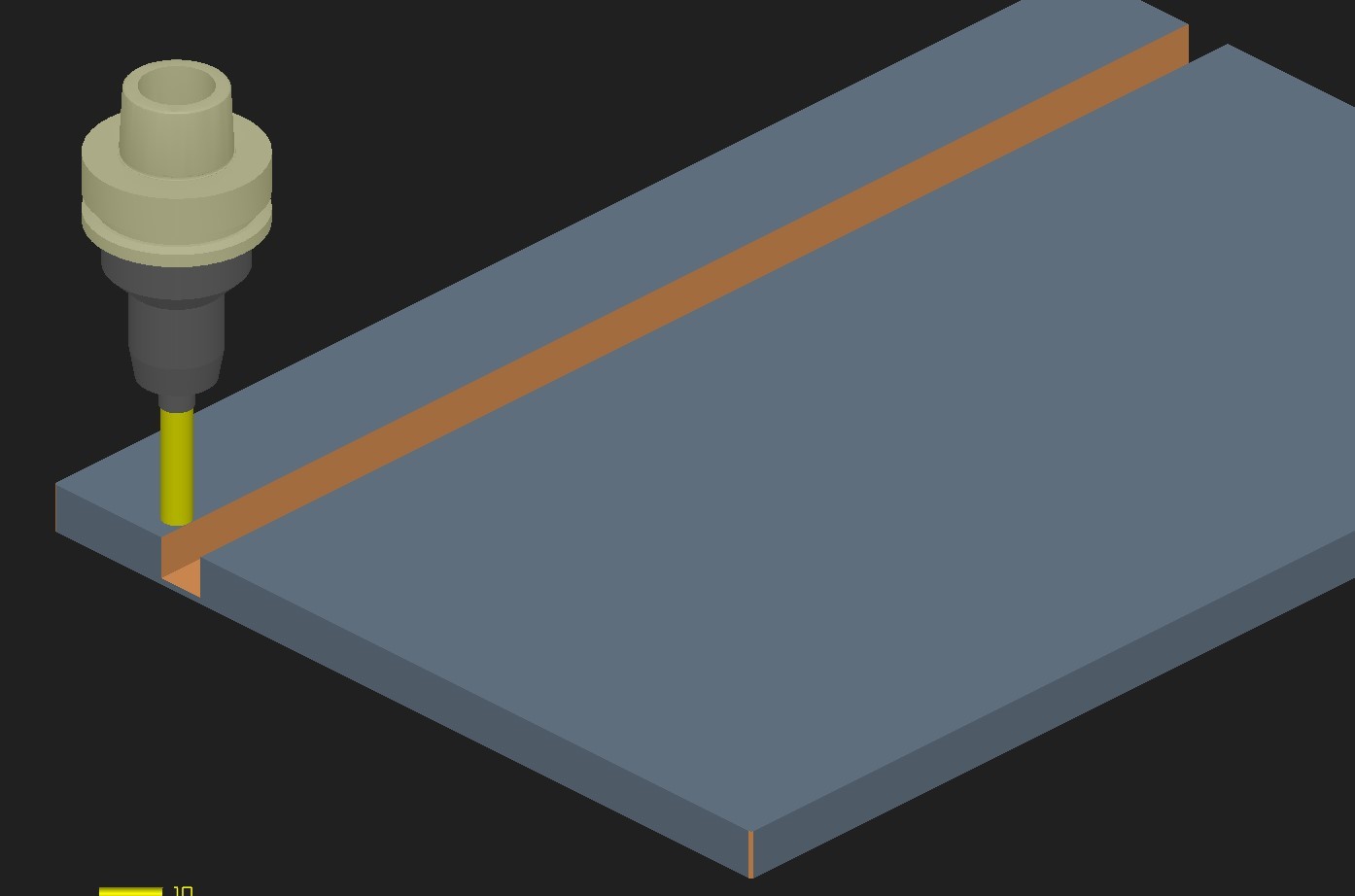

PP_cant-generate-angel-groove-millingside-with-slope-1.jpgImage Enlarger

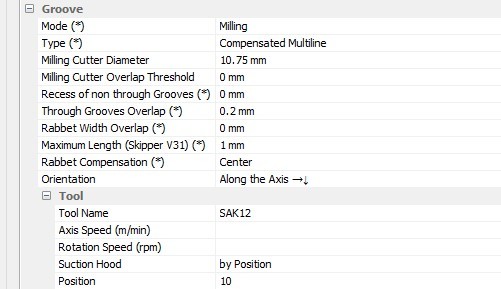

pp_groove_milling_settings-1.jpgImage Enlarger

Please help,

Ain Avi
