Lamello Clamex
Avatar
Alex

Forum Posts: 1662
Subscriber Since:
January 20, 2017
sp_UserOfflineSmall Offline
13
March 31, 2023 - 11:07 am
sp_Permalink sp_Print sp_EditHistory

Hi,



I will pass on the information to the development team,

as soon as the cutting angle exceeds 54° (slope of 36°) the drilling is no longer through, and beyond that the drilling disappears with 18mm panel,



Cheers, Alex

Avatar
Guest
12
March 30, 2023 - 11:32 am
sp_Permalink sp_Print

check these corners :))

Avatar
Guest
11
March 30, 2023 - 11:31 am
sp_Permalink sp_Print

Alex said
Hi,

Please edit your drilling on overrpassing panel to “inside face” , so that it is correctly aligned

drillings.pngImage Enlarger

but yes i’ll ask why this drilling is not a thought drilling

Cheers, Alex



Yes, I did it,

Interesting – if the angle is wider than 90* – then, if the drill is less then material thickness it is showing the drill, But if the drill is through the overpassing material – it is not visible.

On the other side – if the corner is less than 90*, then if drill is mentioned – through – it is appearing for overpassing panel.

Thanks.
BR,
Girts.

Avatar
Alex

Forum Posts: 1662
Subscriber Since:
January 20, 2017
sp_UserOfflineSmall Offline
10
March 30, 2023 - 9:54 am
sp_Permalink sp_Print

Hi,

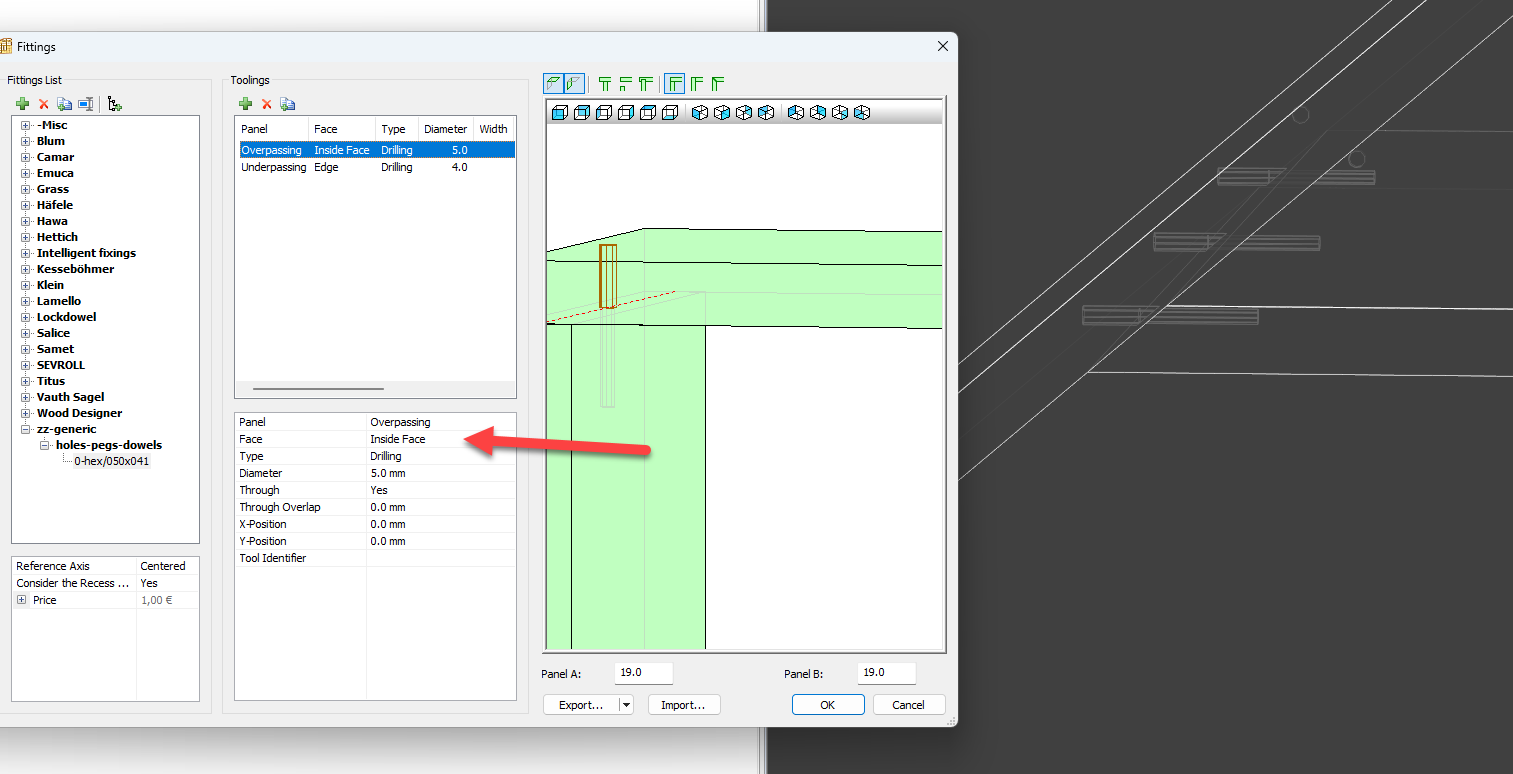

Please edit your drilling on overrpassing panel to “inside face” , so that it is correctly aligned

drillings.pngImage Enlarger

but yes i’ll ask why this drilling is not a thought drilling

Cheers, Alex

sp_PlupAttachments Attachments
Avatar
Guest
9
March 30, 2023 - 9:21 am
sp_Permalink sp_Print

Okay – if I`m playing with fitting dimensions – i can catch the height, But if it`s chosen – Through panell drilling – it`s unfortunately showing not through.

Avatar
Guest
8
March 30, 2023 - 9:17 am
sp_Permalink sp_Print

If I make paralell and paralell – the drill for overpassing panel is not at the same height:

Paralell-paralell.PNGImage Enlarger

sp_PlupAttachments Attachments
Avatar
Guest
7
March 30, 2023 - 9:13 am
sp_Permalink sp_Print

Thanks

Please also check this one:

How to make screws paralell to fixed shelf if top is under angle:

sp_PlupAttachments Attachments
Avatar
Alex

Forum Posts: 1662
Subscriber Since:
January 20, 2017
sp_UserOfflineSmall Offline
6
March 30, 2023 - 7:55 am
sp_Permalink sp_Print

Hi,

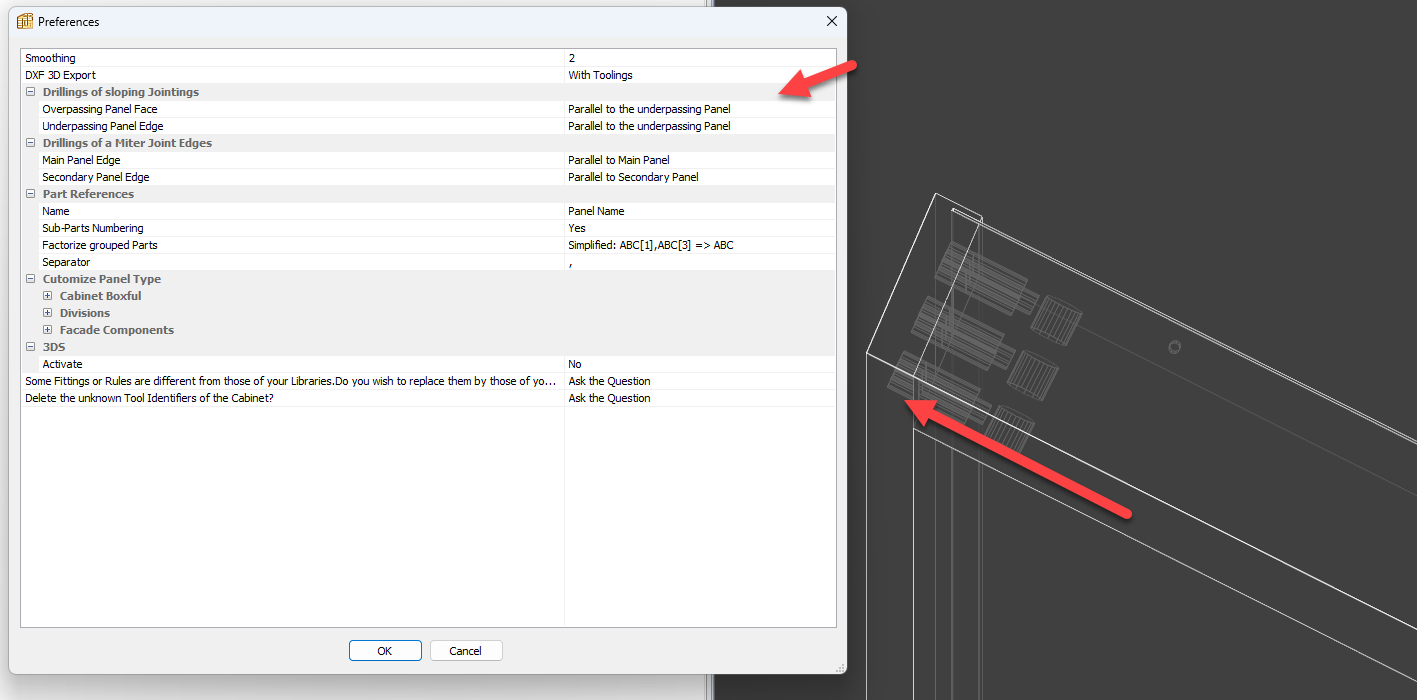

I will study this, but point but in see of your capture this this not mitred-joint

Sloping-jointings.pngImage Enlarger

Cheers, Alex

sp_PlupAttachments Attachments
Avatar
Guest
5
March 29, 2023 - 3:14 pm
sp_Permalink sp_Print

Hi,
Could you please tell me how to make furniture fitting for mitre joint?

I have cabinet with not 90* corner:

BR,
Girts

sp_PlupAttachments Attachments
Avatar
Alex

Forum Posts: 1662
Subscriber Since:
January 20, 2017
sp_UserOfflineSmall Offline
4
July 4, 2022 - 4:43 pm
sp_Permalink sp_Print

Hi,



Yes,

Clamex.pngImage Enlarger

From fitting link list you can restore them into your libraries

restore.pngImage Enlarger



All the best, Alex

sp_PlupAttachments Attachments
