Missing Parts in Vcarve
Avatar
Alex
FRANCE

Moderator
Forum Posts: 2128
Member Since:
January 20, 2017
sp_UserOfflineSmall Offline
4
October 30, 2023 - 3:03 pm
sp_Permalink sp_Print sp_EditHistory

This separates identical cabinets into project mode,

Same cabinet add 2 times

cheers, Alex

Avatar
scott powell
Member

Full
Forum Posts: 27
Member Since:
May 25, 2023
sp_UserOfflineSmall Offline
3
October 30, 2023 - 1:06 pm
sp_Permalink sp_Print

thankyou



what does the ungroup models do?

Avatar
Alex
FRANCE

Moderator
Forum Posts: 2128
Member Since:
January 20, 2017
sp_UserOfflineSmall Offline
2
October 30, 2023 - 12:49 pm
sp_Permalink sp_Print

Hi,

OptiNest nesting software is able to manage quantities when exporting.

But PolyBoard To Vcarve you Need to generate a single DXF per parts ,

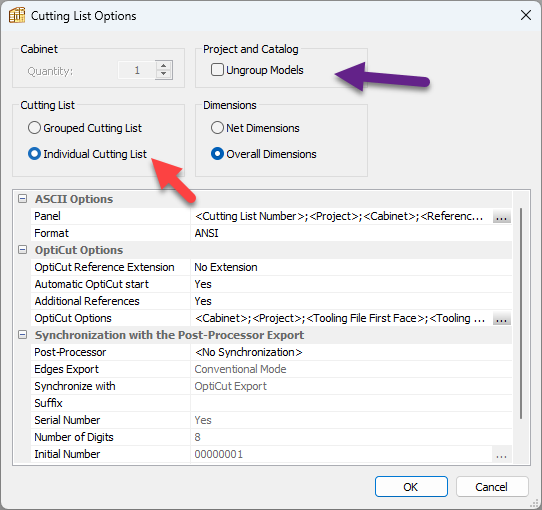

Go to menu Cutting list > Cutting list options…

Then select “Individual cutting list” and if Need “Ungroup Models”

UNGRP.pngImage Enlarger

Cheers, Alex

sp_PlupAttachments Attachments
Avatar
scott powell
Member

Full
Forum Posts: 27
Member Since:
May 25, 2023
sp_UserOfflineSmall Offline
1
October 30, 2023 - 11:15 am
sp_Permalink sp_Print

Hi



When I export my cabinets from polyboard and open the vectors in vcarve i have missing parts which seem to be when there are more than 1 part that is the same



for example multiple adjustable shelves, drawer box parts



thanks

Scott
