Second side drilling on first side
Avatar
Alex

Forum Posts: 1655
Subscriber Since:
January 20, 2017
sp_UserOfflineSmall Offline
5
October 25, 2023 - 1:37 pm
sp_Permalink sp_Print

Hi Patrick,

As you can see, technical exchanges can only take place via the Forum.

This avoids the customer support team having to process the mail and send it back to us, with a sometimes long lead time

And to ensure that the technical team is notified directly of messages from the forum, enabling us to respond more quickly,

To keep things simple, all Non-Through drills are Type “P”.

All Through is Type “L”, note that Non-Through drillings face to face and transformed into open hole drilling will also be Type “L”.

Is this case you can force “P” Type by using “Customized Tools”

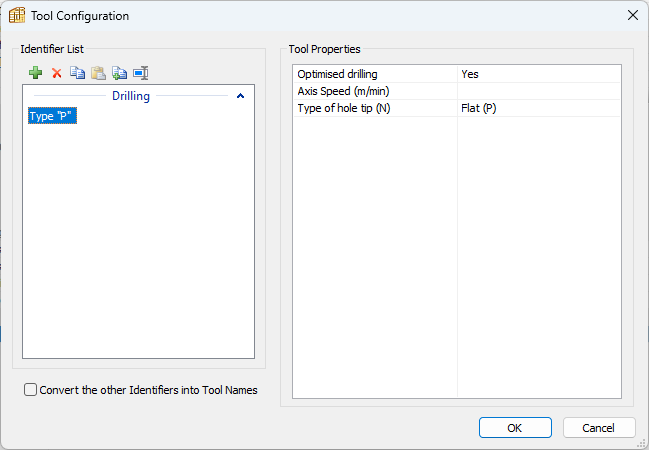

Flat-type-P.pngImage Enlarger

In fitting for any through drilling or non-throught can be merged to through dilling, like pegs drillings

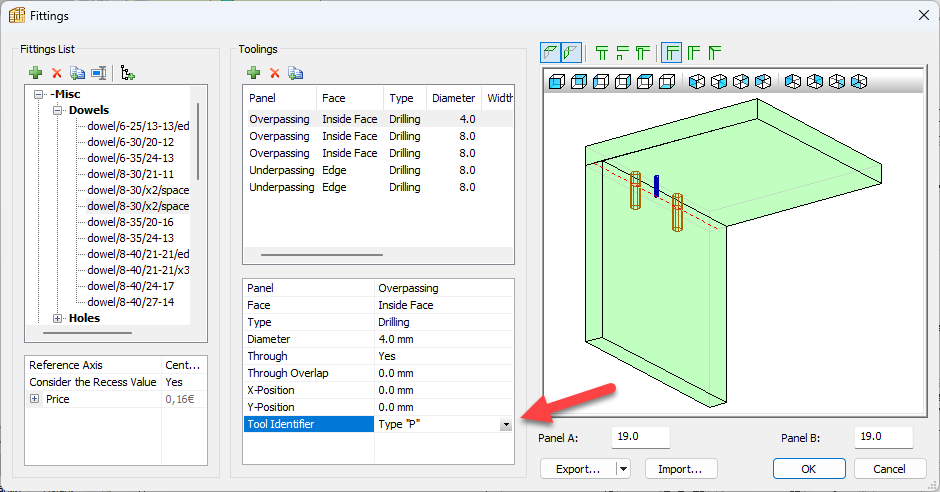

fit-dril.pngImage Enlarger

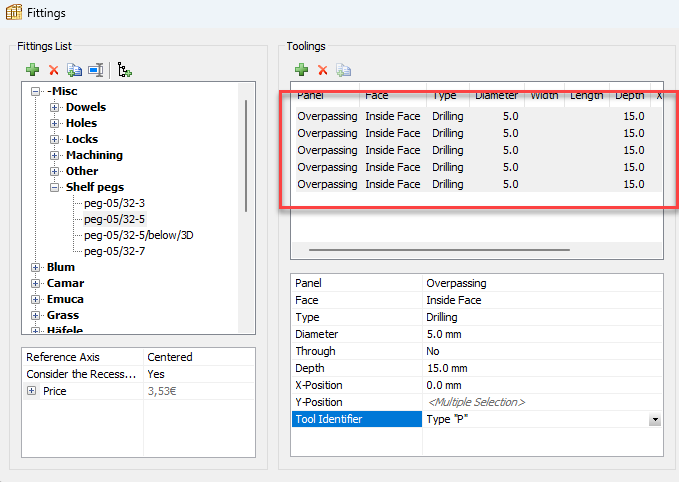

peg.pngImage Enlarger

Or regular drillings

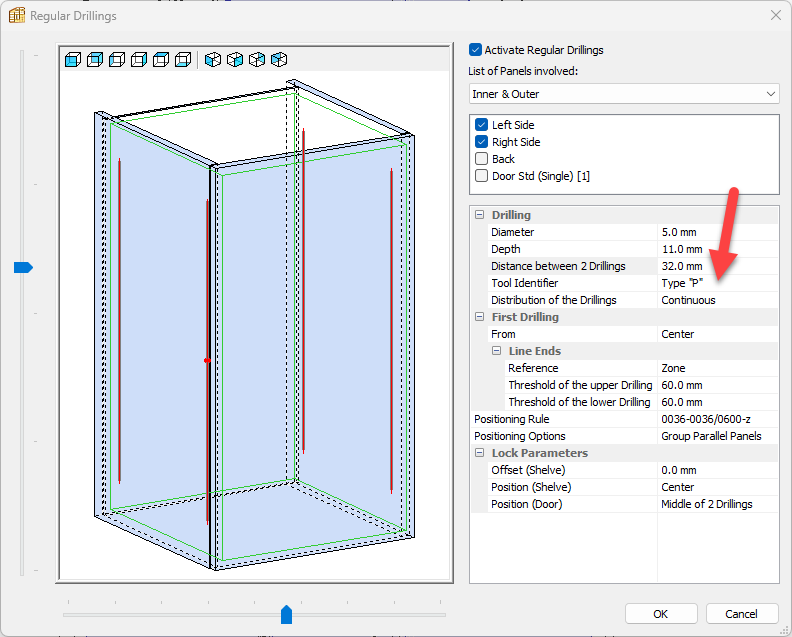

REg-drill.pngImage Enlarger

Cheers, Alex

sp_PlupAttachments Attachments
Avatar
Alex

Forum Posts: 1655
Subscriber Since:
January 20, 2017
sp_UserOfflineSmall Offline
4
July 7, 2023 - 1:44 pm
sp_Permalink sp_Print

Hi,

Looking your cabinet , you well have drilling on both sides

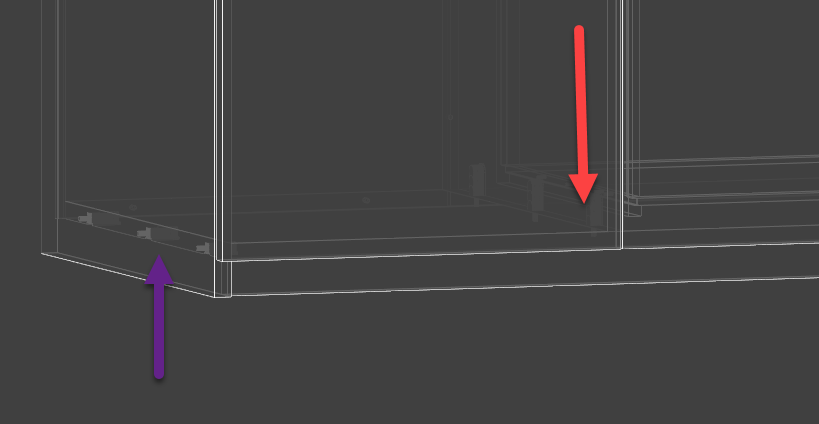

drillings.pngImage Enlarger

Looking your PP, your PP is setup to generate single files per part

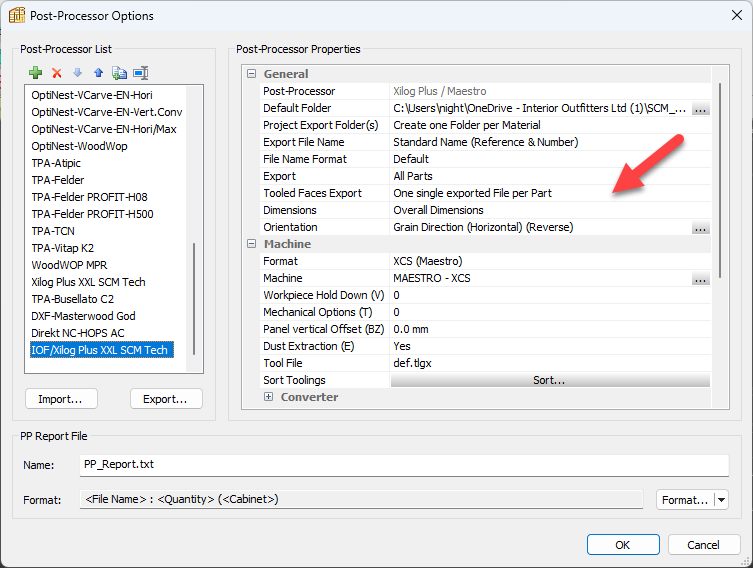

SCM-PP.pngImage Enlarger

This mode is reserved for NC with suction pad and beam. In this case included in files a turnaround code for machining the first side, then the second.

For NC Nesting, you need to sort the workpieces, which means that the workpieces machined on side 2 will have to be repositioned alone in order to carry out only groove and hole machining.

Please see video below to see how you can sort parts


Cheers, Alex

sp_PlupAttachments Attachments
Avatar
Patrick Maylor

Forum Posts: 50
Subscriber Since:
May 3, 2023
sp_UserOfflineSmall Offline
3
July 7, 2023 - 7:16 am
sp_Permalink sp_Print

Hi Alex, The issue is that the second face drillings were made on the first face instead of being excluded.  The files were in the email I sent, but I have zipped and attached the picture of the set up.  The drilling face was from below as the Cabineo for the Left and Right side of the cabinet were below the base.  The 5mm holse for the Cabineo screws in the base for the dividers should not have been drilled in this case.  Thanks

Avatar
Alex

Forum Posts: 1655
Subscriber Since:
January 20, 2017
sp_UserOfflineSmall Offline
2
July 6, 2023 - 3:55 pm
sp_Permalink sp_Print

Hi there,



Sorry, I can’t see the attached files,

Right click on the files then select send as compressed zip before uploading,

But I think you need to use Super post-processor to sort the parts with a second face drilling.



Cheers, Alex

Avatar
Patrick Maylor

Forum Posts: 50
Subscriber Since:
May 3, 2023
sp_UserOfflineSmall Offline
1
July 6, 2023 - 2:30 pm
sp_Permalink sp_Print

Hi Alexandre



I have attached the files that you requested below



Thanks
