Stiar designer 7 beta
Avatar
Ness

Forum Posts: 1774
Subscriber Since:
October 4, 2012
Thanked 517 times in 1774 posts
Reputation: 21801
sp_UserOfflineSmall Offline
10
July 15, 2016 - 10:24 am
sp_Permalink sp_Print sp_EditHistory

Hi Aaron,

To design this in StairDesigner just make  the strings the full thickness metal + glass and add glass handrail with thickness of the glass and the full height of the rail.

3d040.jpgImage Enlarger

All the best,

Ness

sp_PlupAttachments Attachments
Avatar
Aaron Mifsud

Forum Posts: 8
Subscriber Since:
April 7, 2016
Thanked 0 times in 8 posts
Reputation: 43
sp_UserOfflineSmall Offline
9
July 14, 2016 - 1:49 pm
sp_Permalink sp_Print

Hi Ness,

Thank you for your reply. I have another question.

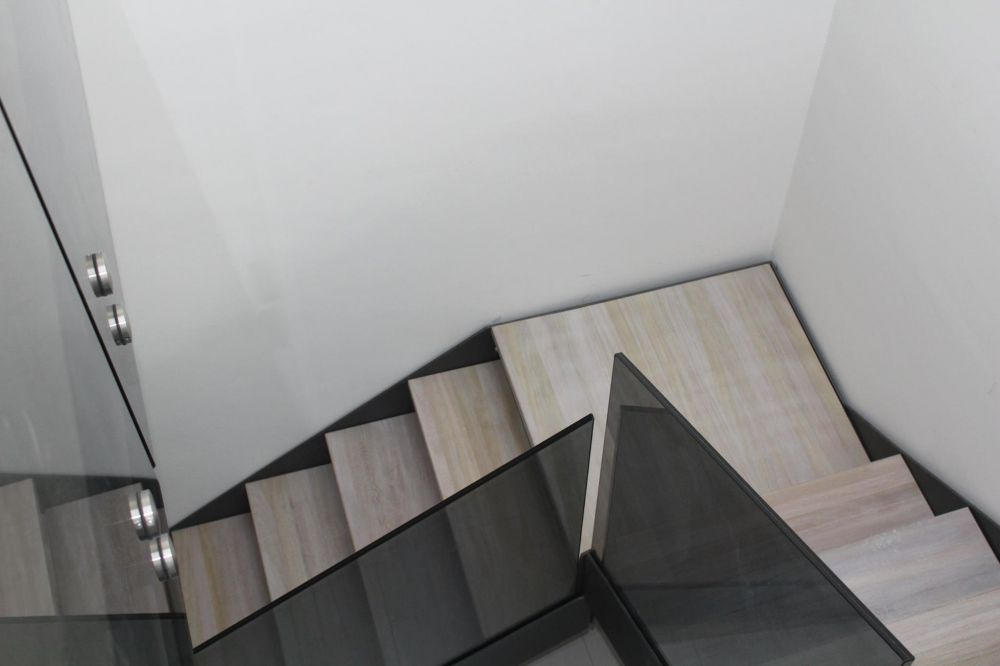

The staircase is going to be made of steel and with a glass handrail. As you can see from the picture i would like to opt for this system of hand rail. Ts it possible to design it with this software. if not, can you suggest anything else?

Thanks

Aaron13062030_753954931408202_7811220364589819387_n.jpgImage Enlarger

13147833_757118507758511_7284223658364428_o.jpgImage Enlarger

Avatar
Ness

Forum Posts: 1774
Subscriber Since:
October 4, 2012
Thanked 517 times in 1774 posts
Reputation: 21801
sp_UserOfflineSmall Offline
8
July 14, 2016 - 12:51 pm
sp_Permalink sp_Print

Hi Aaron,

If you want your winders supported by the strings you must have curved strings on the left.

I attach a model that I consider the best configuration for you stair.

All the best,

Ness

3d030.jpgImage Enlarger

All the best,

Ness

sp_PlupAttachments Attachments
Avatar
Aaron Mifsud

Forum Posts: 8
Subscriber Since:
April 7, 2016
Thanked 0 times in 8 posts
Reputation: 43
sp_UserOfflineSmall Offline
7
July 14, 2016 - 12:33 pm
sp_Permalink sp_Print

Hi Ness,

This is my stairs by using V6. The problem is the stringboard which are not visible on the left hand side. i want that my stringboards straight and not curved. Can i found a solution for it?

AMFL-stairs.JPGImage Enlarger

sp_PlupAttachments Attachments
Avatar
Ness

Forum Posts: 1774
Subscriber Since:
October 4, 2012
Thanked 517 times in 1774 posts
Reputation: 21801
sp_UserOfflineSmall Offline
6
July 13, 2016 - 1:26 pm
sp_Permalink sp_Print

Hi Aaron,

For what you want to do please use version 6:

3d020.jpgImage Enlarger

V7 doesn’t have the versatility of v6 yet.

All the best,

Ness

sp_PlupAttachments Attachments
Avatar
Aaron Mifsud

Forum Posts: 8
Subscriber Since:
April 7, 2016
Thanked 0 times in 8 posts
Reputation: 43
sp_UserOfflineSmall Offline
5
July 13, 2016 - 9:59 am
sp_Permalink sp_Print

Hi Ness,

yesterday i tried to download the latest update of the version 7 beta 7.02b but still my problem persist.

My stairs starts with a landing. In this case the software does not support this. i can’t start my project yet.

How can i solve this issue?

thanks

Aaron

Avatar
Ness

Forum Posts: 1774
Subscriber Since:
October 4, 2012
Thanked 517 times in 1774 posts
Reputation: 21801
sp_UserOfflineSmall Offline
4
June 19, 2016 - 7:36 am
sp_Permalink sp_Print

Hi Aaron,

In this release you can add landings. so id you start off with a multi-flight stair you can add landings as if they were flights.

However, this function is not yet well implemented as you can’t add a landing to as a first step to start the stair.

As well as this landings are added to the tread line and they don’t reduce the tread line.

I’m hoping that this will be improved in later versions.

All the best,

Ness

Avatar
Aaron Mifsud

Forum Posts: 8
Subscriber Since:
April 7, 2016
Thanked 0 times in 8 posts
Reputation: 43
sp_UserOfflineSmall Offline
3
June 19, 2016 - 7:07 am
sp_Permalink sp_Print

Hi Ness,

I have dowloaded the new beta verion 7.02a since you told me that the new version will have the landing step function. how can i set up my first step as a landing step ?

regards

Aaron

Avatar
Ness

Forum Posts: 1774
Subscriber Since:
October 4, 2012
Thanked 517 times in 1774 posts
Reputation: 21801
sp_UserOfflineSmall Offline
2
May 23, 2016 - 5:54 pm
sp_Permalink sp_Print

Hi Aaron,

Sorry StairDesigner 7 doesn’t have the landing step function yet.

It should be ready in the next release that coming next week.

All the best,

Ness

Avatar
Aaron Mifsud

Forum Posts: 8
Subscriber Since:
April 7, 2016
Thanked 0 times in 8 posts
Reputation: 43
sp_UserOfflineSmall Offline
1
May 23, 2016 - 5:52 pm
sp_Permalink sp_Print

Hi Ness,

I am using the version 7 beta and i’m noticing that when i right click on the step the landing step is not there, and i need to make a landing on the first step. how can i solve it please1221.

thank you

Aaron
