exporting design from polyboard to a 6 sided drilling machine|Page 3|Forum|WOOD DESIGNER
Home
March 11, 2024
Offline
khalid khalaf said
khalid khalaf said
hello
i tested both files, in both files i got DXF loading failed

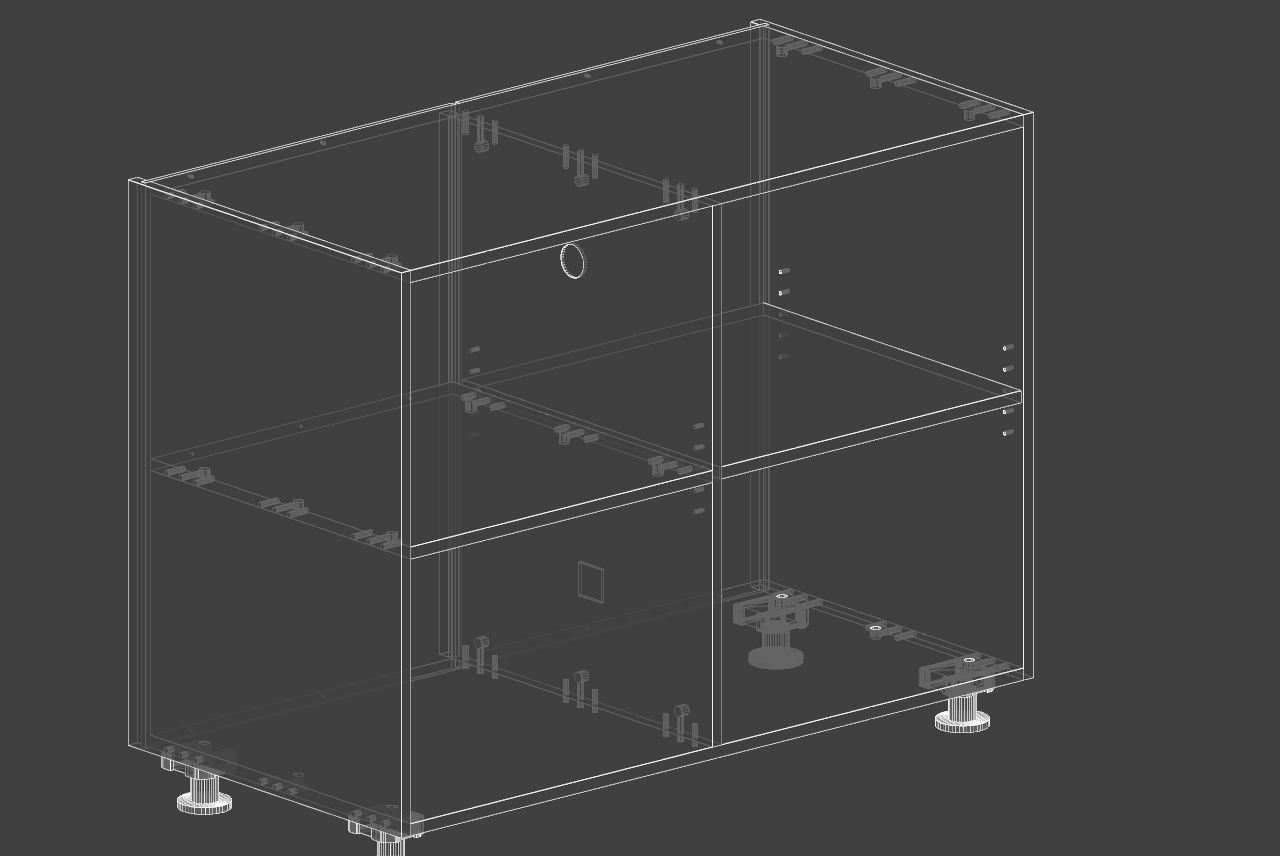

i am testing on this box design
March 11, 2024
Offline
khalid khalaf said
helloi tested both files, in both files i got DXF loading failed
March 11, 2024
Offline
hello
i tested both files, in both files i got DXF loading failed
March 11, 2024
Offline
Alex said

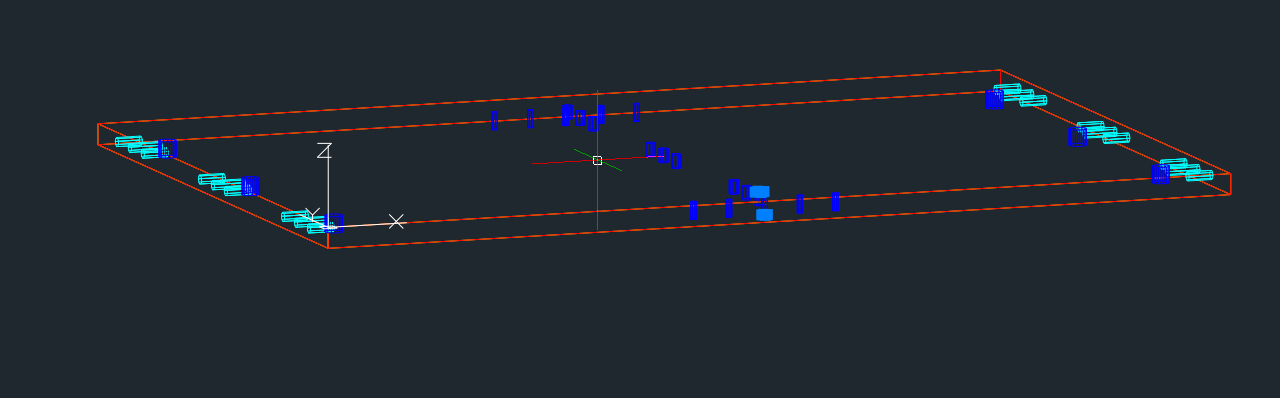

Hi Again ,Please find attached 2 samples generate By PolyBoard
First having Edge drilling (left and right) sufficient for the test ,+ Drilling on both face top and bottom
Upright_DRILL_ONLY.DXF
Second part milling + inner milling + groove on both face + Drilling
Upright_FULL.DXF
Waiting your feedback!
i will test and get back to you
thank you so much
March 11, 2024
Offline
the PCDrillCAM32 software will only alow saving in .scx format
i wll attach the file just remove the .dxf extention

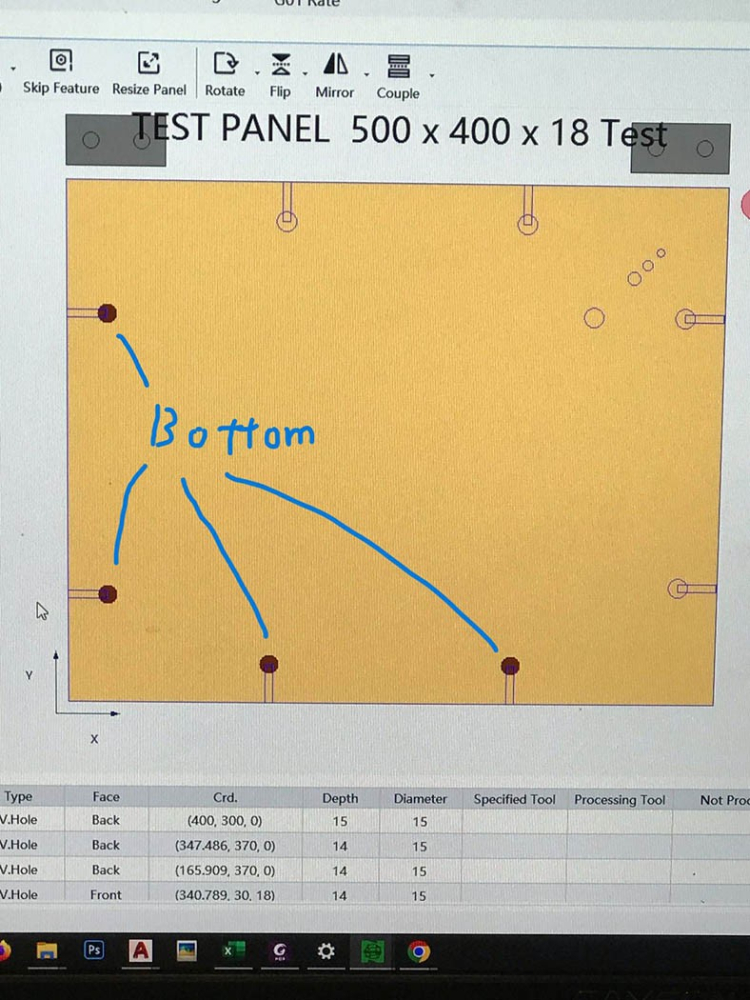

also the picture from the PCDrillCAM32 user interface , all drill holes are referenced to top right corner
light circle holes are top side, dark 4 holes are from bottom side
January 20, 2017
Offline
Hi Again ,
Please find attached 2 samples generate By PolyBoard
First having Edge drilling (left and right) sufficient for the test ,+ Drilling on both face top and bottom
Upright_DRILL_ONLY.DXF
Second part milling + inner milling + groove on both face + Drilling
Upright_FULL.DXF
Waiting your feedback!
March 11, 2024
Offline
thank you very much Sir. Alex
i will do a quick run on the machine and post the file here
January 20, 2017
Offline
Thanks for this!
I think DXF is definitely the better solution for you
khalid khalaf said
i found this pdf that talks about naming layers on a DXF
January 20, 2017
Offline
Hi,
I’ll doing my best to help you,
By looking PP list I have made first cleaning
Only 2 PP may be used ,
SCM XXL can only be used if the part is turned over.
Pytha DXF, syntec DXF or MPR, subject to knowing their constraints,
because DXF PostPro how are able to output 6 sides

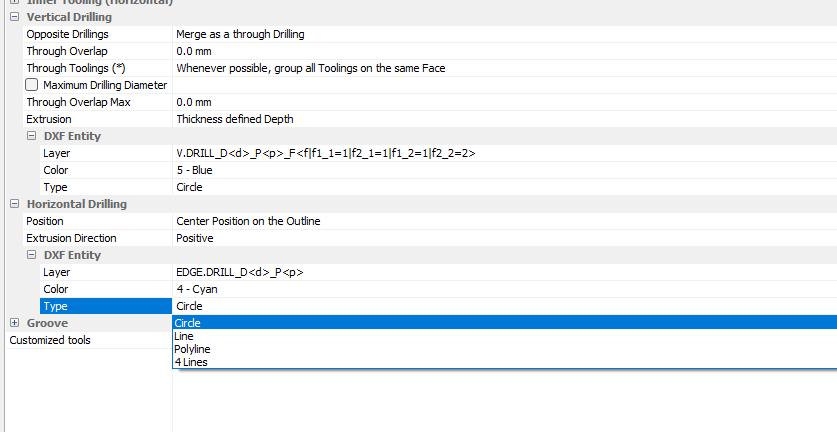

Not all CAD/CAM programs work with the same parameters… some only search for the drawing and the drawing type, others for the layer name and the drawing, depth positive value or negative values or define by drilling depth or thickness….
If you are able to provides working DXF on your CNC, that’s help my to find the best setting,
because the set of options proposed could then only be with the latest version 7.10U or higher
Cheers, Alex
