This commercial project shows you how a professional workshop partnered with one of customers to design with the free version of our cabinet design program Polyboard, then outsource cut and machining of the parts.
These parts were delivered back flat packed completely ready for assembly.

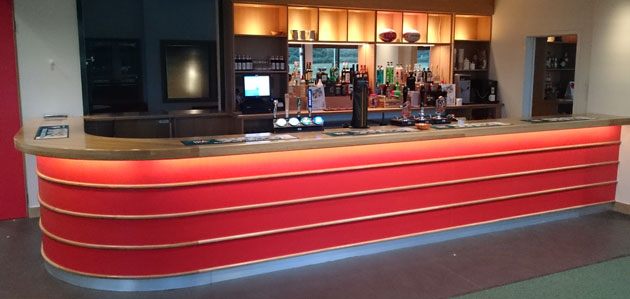

The project was run by Lee Ferris and the team at Hutton Timber Products Ltd. It was a large bar install for a sports club and included a lot of cabinetry.
Lee used the free version of Polyboard, with full access to software design advice whenever he needed it on our Wood Designer forum, or via screen sharing sessions.
Here’s a comment from Dean on the project:
We machined and edged 41 10ft x 4ft sheets and sprayed all lacquered panels required for the back fitting.
We delivered it 2 weeks ago and have since had a call to say they are impressed.
This was a great use of Polyboard as we managed all the machining and edging in 3 days with just 2 men then 2 days to spray and pallet ready for delivery. All panels were stickered and along with exploded diagrams, this would of been impossible without Polyboard so very pleased with it.
Dean Price, Tees Tech Joinery
This is a view of the project in Polyboard, showing both side of the bar either side of the central partition wall:
And here’s a close up in wireframe of a cabinet showing the machining for the Raffix connectors:
Here’s what Lee had to say:
In the past I had to draw the project in SketchUp or AutoCad then size up all the panels required, including a schedule showing the grain direction and where edging was required. I would send this off to a supplier to get the parts cut.
Then when you got it all back, we would have to do the jointing, with biscuits for example. The process was prone to error and pretty slow.
This time, I designed the project in the free version of Polyboard and sent it to Dean at Tees Tech Joinery. They cut and edged all the panels and delivered flat packed along with machinings for Raffix connectors so you could assemble easily and quickly.
The whole process worked very well, was faster and cut down on human error, and so worked out cheaper.
Lee Ferris, Hutton Timber Products Ltd
Tees Tech Joinery use SCM CNC machines with a Biesse edgebander, spray booths and work out of a really nice showroom complete with design centre. This features Polyboard on a big screen to present to clients, which we think is a super idea and Dean tells us works very well.
As well as our Polyboard cabinet design software, they nest using our OptiNest software for a very efficient workflow.
